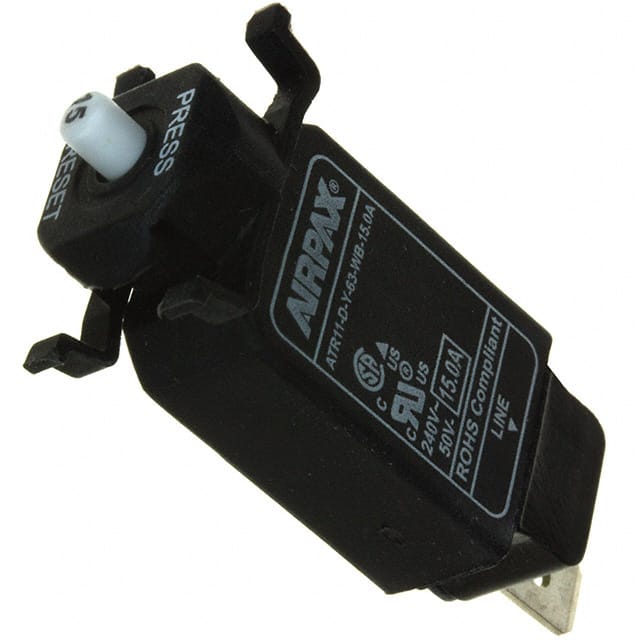

The Airpax™ ATR11 product family, including the ATR11-D-Y-63-WB-15.0A, is a single-pole, thermally operated overload protector. It features a snap-acting trip mechanism for reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 15A, a voltage rating of 240 VAC and 50 VDC, and a maximum operating temperature of 60°C. The device offers a maximum breaking capacity of 60A for currents above 6A and a conditional short circuit capacity of 1KA. It has an operational life of 1000 cycles at 2x In.
Designed for general industrial applications, this thermal circuit protector utilizes a thermal tripping method and a push-to-reset actuator type. It is suitable for panel mounting configurations.
This RoHS compliant protector provides reliable overcurrent protection for equipment. It is designed with multiple mounting configurations available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 15A.
It is rated for 240 VAC and 50 VDC.
It is a thermal circuit breaker.
It features a push-to-reset actuator type.
The maximum operating temperature is 60°C.
The operational life is 1000 cycles at 2x In.
