| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Protection Range | |
| Voltage Rating |

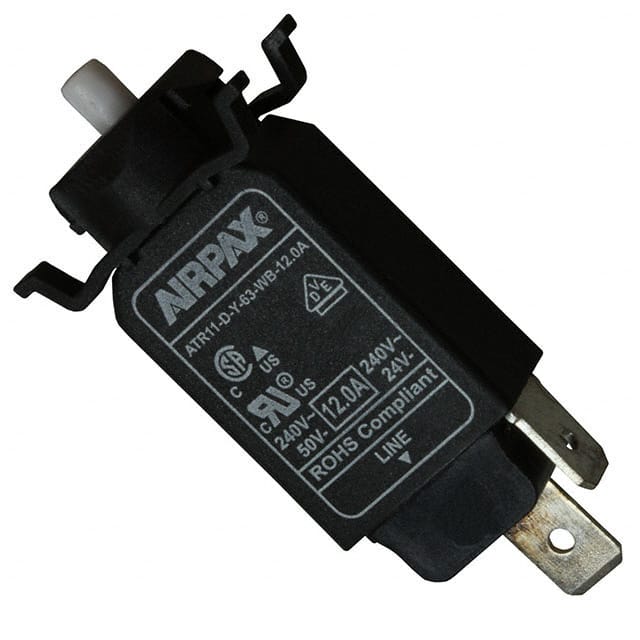

The Sensata ATR11 Series thermal circuit protector, part number ATR11-D-Y-63-WB-12.0A, is a single-pole device designed for reliable overcurrent protection. It operates on a thermal tripping mechanism and offers a trip-free operation.
Key electrical specifications include a current rating of 12A and a voltage rating of 240VAC, with a 50VDC rating also available. The protector has a maximum breaking capacity of 60A and a conditional short circuit capacity of 1KA at 240VAC. It meets standards such as EN60934, CSA22.2 No. 235.04, and UL-1077.
This circuit breaker is designed for panel mounting and features a push-to-reset actuator type. It operates within a temperature range up to 60°C ambient. The device is RoHS3 compliant and has a moisture sensitivity level of 1.
With an operational life of 1000 cycles at 2x In, the ATR11 series is suitable for general industrial applications requiring dependable circuit protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 12A.
The voltage rating is 240 VAC.
It has 1 pole.
It is a thermal circuit breaker.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 Compliant.
