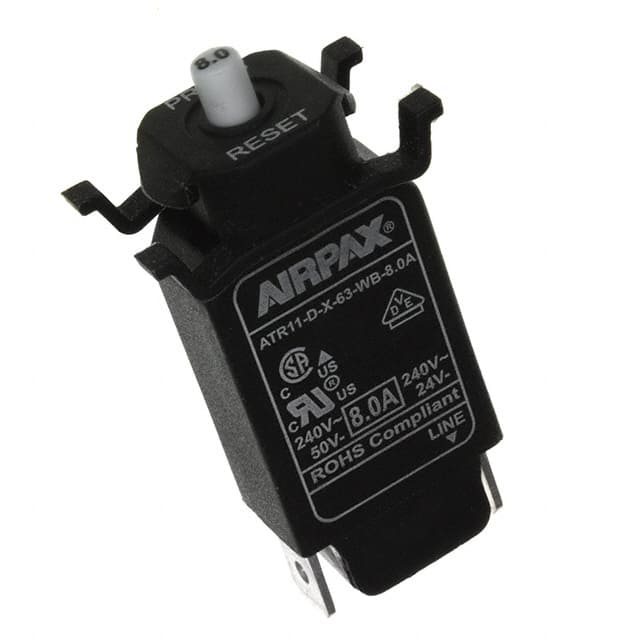

The Sensata ATR11-D-X-63-WB-8.0A is a single-pole, thermally operated circuit protector designed for reliable current overload protection. It features a snap-acting, trip-free mechanism.
Key electrical specifications include a current rating of 8A, a voltage rating of 240 VAC and 50 VDC, and a maximum breaking capacity of 60A. The device operates with a thermal tripping method and a push-to-reset actuator type.
This circuit protector is suitable for general industrial applications and is designed for panel mounting. It has an operational life of 1000 cycles at 2x In and a maximum operating temperature of 60°C.
The ATR11 series offers various mounting configurations and is RoHS3 compliant.
The current rating is 8A.
The voltage rating is 240 VAC and 50 VDC.
It is a single-pole (1 pole) circuit breaker.
It uses a push-to-reset actuator.
The maximum operating temperature is 60°C.
The RoHS status is RoHS3 Compliant.
