| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Protection Range | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

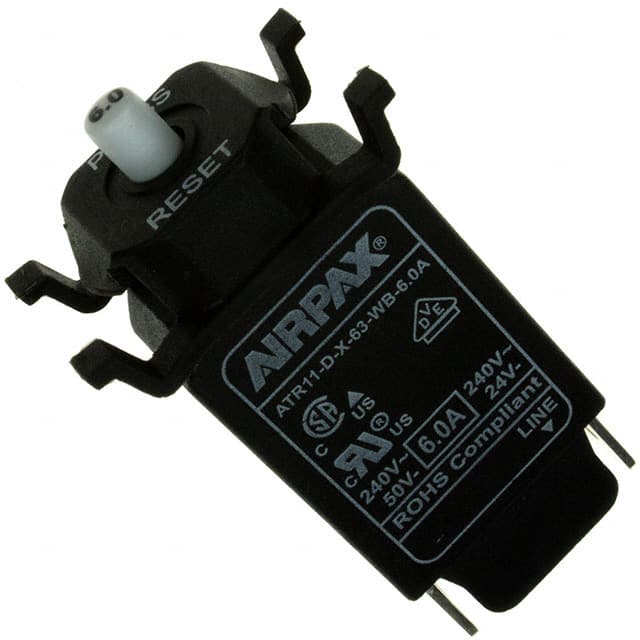

The Sensata ATR11-D-X-63-WB-6.0A is a single-pole, thermally operated overload protector from the ATR11 series. It provides reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 6A, a voltage rating of 240 VAC and 50 VDC, and a maximum breaking capacity of 60A. The breaker type is thermal, with a push-to-reset actuator. It offers an operational life of 1000 cycles at 2x In.
Designed for general industrial applications, this circuit protector has a maximum operating temperature of 60°C. It features a panel mount configuration for easy integration into equipment. The device is RoHS3 compliant and has an MSL of 1.
Additional specifications include an insulation resistance of 100 MΩ at 500VDC and a dielectric strength of 1,500 VAC for 1 minute. The tripping current code is TC2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 6A.
The voltage rating is 240 VAC and 50 VDC.
This circuit breaker has 1 pole.
It is a thermal circuit breaker.
The maximum operating temperature is 60°C.
The mounting type is Panel Mount.
