| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Protection Range | |
| Voltage Rating |

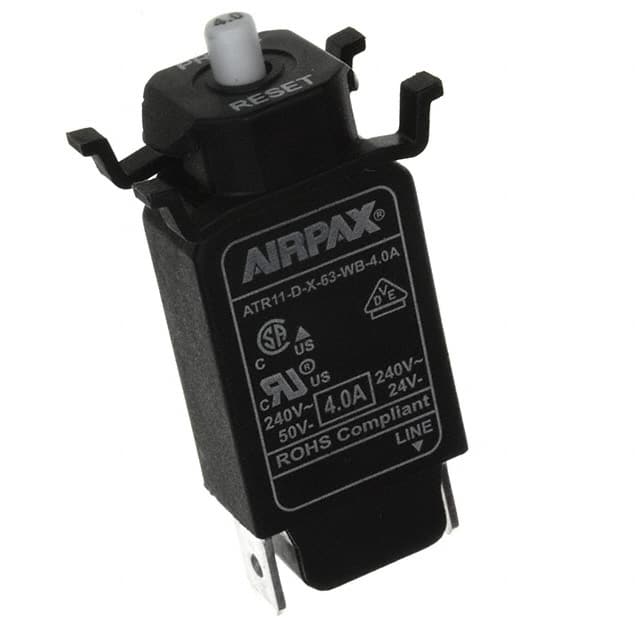

The Sensata ATR11-D-X-63-WB-4.0A is a single-pole, thermally operated circuit protector from the ATR11 series. It provides reliable, trip-free operation on current overloads.
Key electrical specifications include a voltage rating of 240 VAC and 50 VDC, with a current rating of 4A. The breaker type is thermal, and it features a push-to-reset actuator. It is designed for general industrial applications and offers a maximum breaking capacity of 8x In for currents less than 6A and 60A max for currents greater than 6A.
This circuit protector is suitable for panel mounting. It has an operational life of 1000 cycles at 2x In and a maximum operating temperature of 60°C ambient. The ATR11 series is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 240 VAC and 50 VDC.
The current rating is 4A.
It has a push-to-reset actuator.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 Compliant.
