| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |

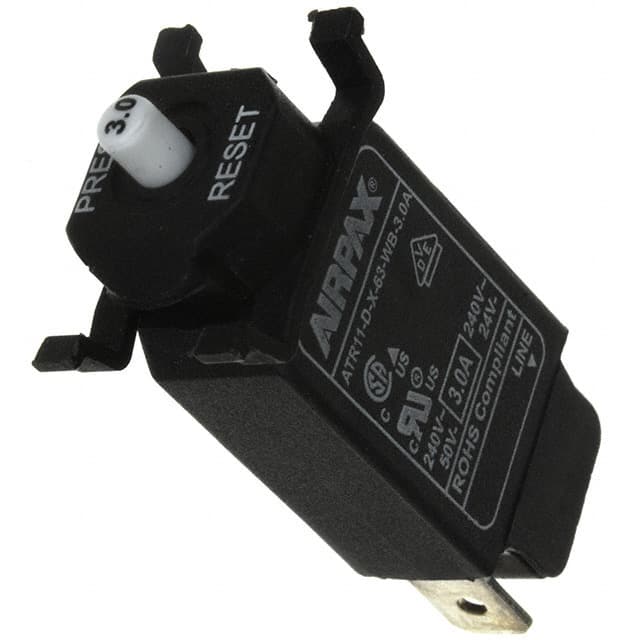

The Sensata ATR11 product family, including the ATR11-D-X-63-WB-3.0A, comprises single-pole, thermally operated overload protectors with a snap-acting trip mechanism. These devices provide reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 3A, a voltage rating of 240 VAC and 50 VDC, and a maximum breaking capacity of 8x In for currents below 6A. The tripping current code is TC2, and the operational life is rated for 1000 cycles at 2x In. The maximum operating temperature is 60°C ambient.
Designed for general industrial applications, this circuit protector features a thermal tripping method and a push-to-reset actuator type. It is suitable for panel mounting. The ATR11 series is RoHS3 compliant and has an MSL of 1.
This specific model, ATR11-D-X-63-WB-3.0A, is part of a family designed with multiple mounting configurations, ensuring versatility in various equipment designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A.
The voltage rating is 240 VAC and 50 VDC.
It has 1 pole.
It supports panel mounting.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 compliant.
