| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Protection Range | |
| Voltage Rating |

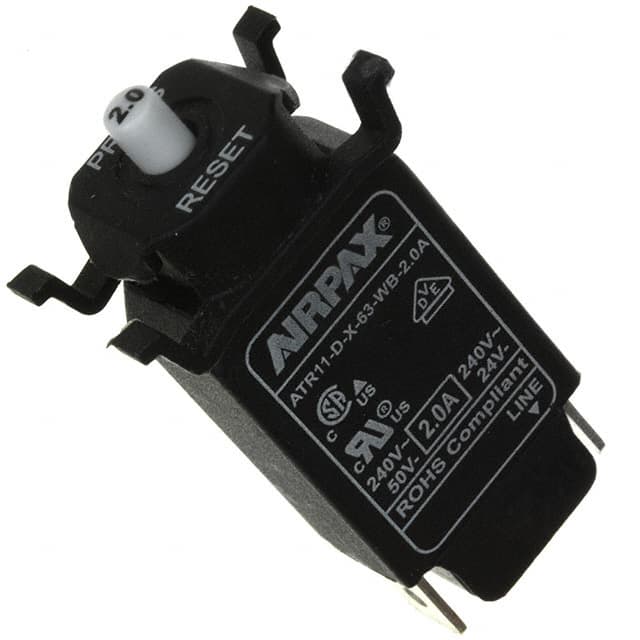

The Sensata ATR11 Series thermal circuit protector, part number ATR11-D-X-63-WB-2.0A, is a single-pole device designed for reliable current overload protection. It features a thermally actuated, trip-free mechanism for consistent operation.
Key electrical specifications include a current rating of 2A, with a broader range available from 0.1A to 16A. The voltage rating is 240 VAC and 50 VDC, with specific VDE ratings of 240 VAC and 24 VDC. The protector has a maximum breaking capacity of 8x In for currents below 6A and 60A maximum for currents above 6A. It also offers a conditional short circuit capacity of 1kA.
Designed for general industrial applications, this circuit protector utilizes a thermal tripping method and a push-to-reset actuation type. It is suitable for panel mounting. The operational life is rated for 1000 cycles at 2x In, and it operates within a temperature range of -20°C to 60°C ambient.
This device is RoHS compliant and meets Moisture Sensitivity Level 1 (MSL 1) requirements. The ATR11 series is built for durability and provides essential protection against overloads in various equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 2A.
The voltage rating is 240 VAC and 50 VDC.
It has a push to reset actuator.
It has 1 pole.
The maximum operating temperature is 60°C.
Yes, it is RoHS3 compliant.
