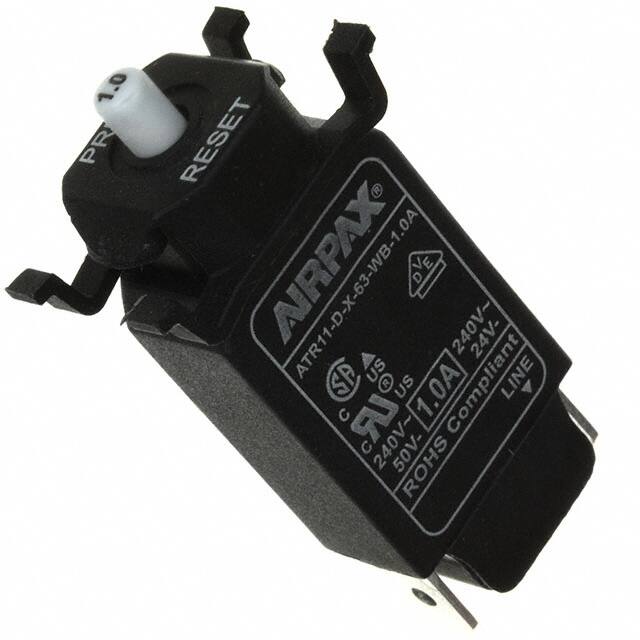

The Airpax™ ATR11 product family, including the ATR11-D-X-63-WB-1.0A, offers single-pole, thermally operated overload protection with a snap-acting, trip-free mechanism.
This specific model is rated for 1A current and operates at voltages up to 240 VAC or 50 VDC. It features a panel mount configuration and a push-to-reset actuator type. The thermal tripping method ensures reliable operation on current overloads.
Key specifications include a maximum breaking capacity of 60A, a conditional short circuit capacity of 1KA, and an operational life of 1000 cycles at 2x In. The maximum operating ambient temperature is 60°C.
Designed for general industrial applications, this RoHS3 compliant protector provides essential overcurrent protection in various equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1A.
The voltage rating is 240 VAC and 50 VDC.
This circuit breaker has 1 pole.
It uses a push-to-reset actuator type.
The maximum operating temperature is 60°C.
The operational life is 1000 cycles at 2x In.
The maximum breaking capacity is 60A.
