| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

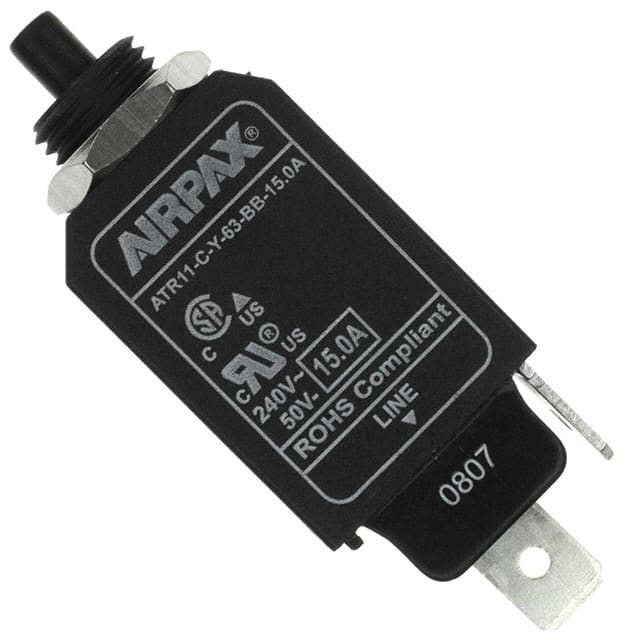

The Sensata ATR11 product family, including the ATR11-C-Y-63-BB-15.0A, comprises single-pole, thermally operated overload protectors with a snap-acting trip mechanism. This design ensures reliable, trip-free operation during current overloads.
Key electrical specifications include a current rating of 15A, a voltage rating of 240 VAC and 50 VDC, and a maximum breaking capacity of 60A for ratings above 6A. The breaker type is thermal, with a push-to-reset actuator. It offers a conditional short circuit capacity of 1KA at 240VAC.
Designed for general industrial applications, this circuit protector has a maximum operating ambient temperature of 60°C. It features a panel mount configuration for easy integration into systems. The operational life is rated for 1000 cycles at 2x In.
Compliance information indicates RoHS3 compliance and an MSL of 1 Unlimited. The ATR11 series is built for reliable protection in various equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 15A.
The voltage rating is 240 VAC and 50 VDC.
This circuit breaker has 1 pole.
It uses a push to reset actuation type.
The maximum operating ambient temperature is 60°C.
Yes, it is RoHS3 compliant.
