| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

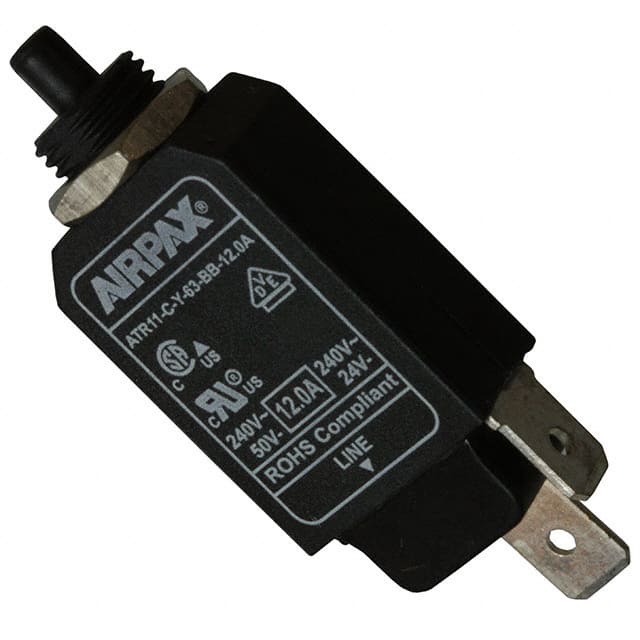

The Sensata ATR11 Series thermal circuit protector, model ATR11-C-Y-63-BB-12.0A, is a single-pole device designed for reliable current overload protection. It features a thermally operated, trip-free snap-acting mechanism.
This circuit breaker is rated for 12A at 240VAC or 50VDC. It has a maximum breaking capacity of 60A and a conditional short circuit capacity of 1KA. The tripping current code is TC2, and it offers an operational life of 1000 cycles at 2x In.
Designed for general industrial applications, the ATR11-C-Y-63-BB-12.0A features a push-to-reset actuator and a panel mount configuration. The maximum operating ambient temperature is 60°C.
Key features include RoHS3 compliance and MSL 1 rating. The device is designed for trip-free operation on current overloads, ensuring safety and reliability in various equipment protection scenarios.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 12A.
The voltage rating is 240 VAC and 50 VDC.
It features a push-to-reset actuator type.
It is designed for panel mounting.
The maximum operating ambient temperature is 60°C.
