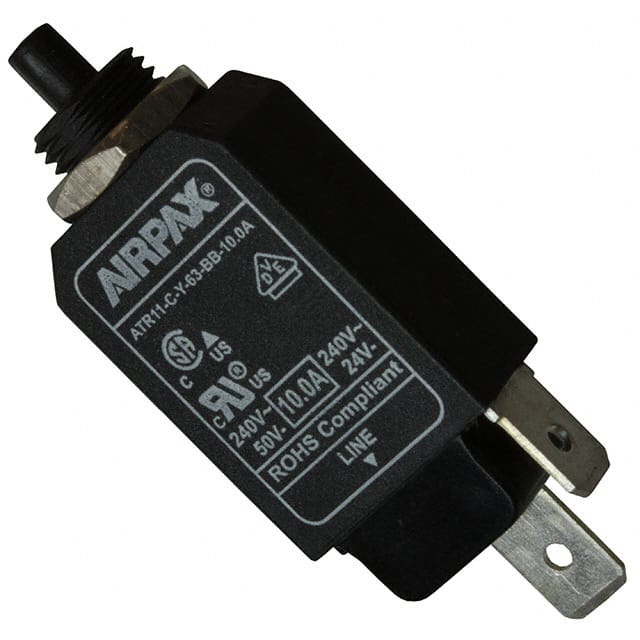

The Sensata ATR11-C-Y-63-BB-10.0A is a single-pole, thermally operated circuit protector designed for reliable, trip-free operation on current overloads. This device features a 10A current rating and can handle up to 240 VAC or 50 VDC.
Key electrical specifications include a maximum breaking capacity of 60A for ratings above 6A, and a conditional short circuit capacity of 1KA. The protector has an operational life of 1000 cycles at 2x In and a tripping current code of TC2. It operates within a maximum ambient temperature of 60°C.
Designed for general industrial applications, this circuit breaker utilizes a thermal tripping mechanism and a push-to-reset actuator. It is suitable for panel mounting and is RoHS3 compliant. The ATR11 series offers protection across a wide current range from 0.1 to 16.0 Amps.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
The voltage rating is 240 VAC or 50 VDC.
It is a thermal circuit breaker.
It is designed for panel mounting.
It is RoHS3 Compliant.
