| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

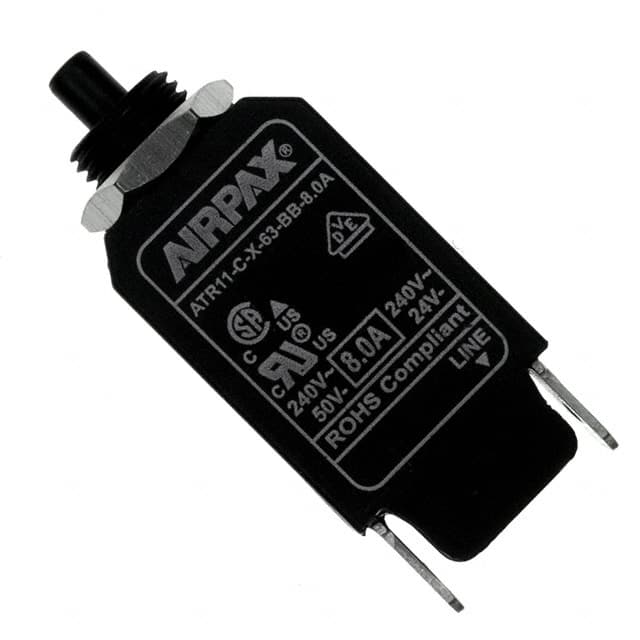

The Sensata ATR11-C-X-63-BB-8.0A is a thermal circuit protector designed for general industrial applications. This single-pole breaker offers reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 8A and a voltage rating of 240VAC or 50VDC. It features a push-to-reset actuator and is designed for panel mounting. The breaker operates thermally and provides overload protection.
Additional specifications include a maximum operating temperature of 60°C, an insulation resistance of 100 MΩ at 500VDC, and a dielectric strength of 1,500 VAC. The operational life is rated for 1000 cycles at 2x In.
This series is RoHS compliant and designed for equipment protection, offering a protection range from 0.1 to 16.0 Amps.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 8A.
It is rated for 240 VAC and 50 VDC.
It is a thermal circuit breaker with a trip-free operation.
It features a push-to-reset actuation type.
The mounting type is Panel Mount.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 Compliant.
