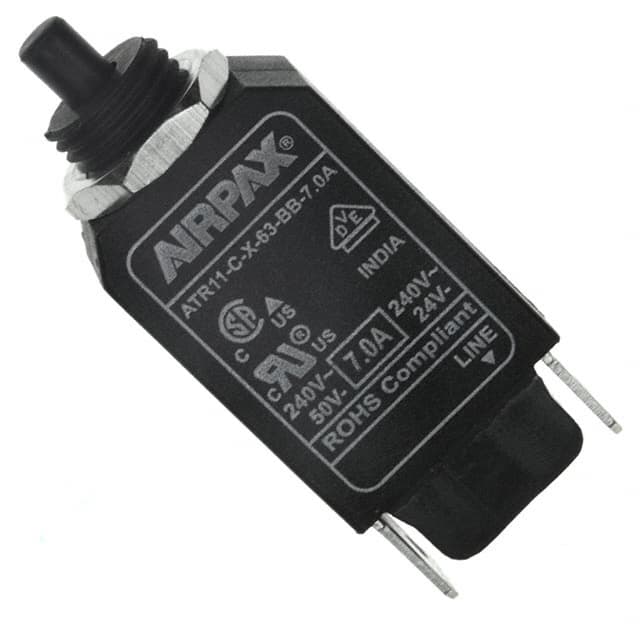

The Airpax™ ATR11 product family, including the ATR11-C-X-63-BB-7.0A, offers single-pole, thermally operated overload protection with a snap-acting trip mechanism for reliable, trip-free operation.
This specific model features a current rating of 7A and is designed for a maximum operating voltage of 240VAC or 50VDC. It has a maximum breaking capacity of 60A for currents above 6A and a conditional short circuit capacity of 1KA. The protector operates on a thermal tripping method and features a push-to-reset actuator type.
Designed for general industrial applications, the ATR11 series is available with various mounting configurations, including panel mount. It offers an operational life of 1000 cycles at 2x the rated current and operates within a maximum ambient temperature of 60°C.
Compliance includes RoHS3 status. The unit is designed for durability and reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 7A.
It is rated for 240VAC and 50VDC, with a VDE rating of 24VDC.
The mounting type is Panel Mount.
The maximum operating temperature is 60°C ambient.
Yes, it is RoHS3 Compliant.
