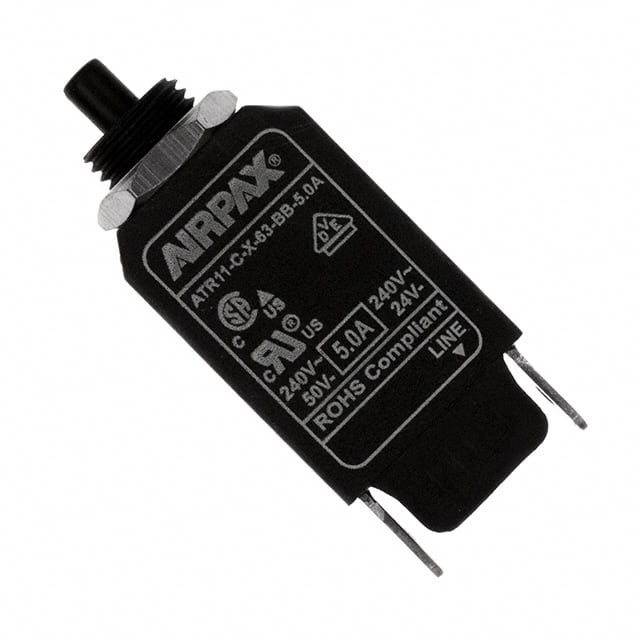

The Sensata ATR11-C-X-63-BB-5.0A is a single-pole, thermally operated overload protector from the ATR11 series. It provides reliable, trip-free operation on current overloads and is suitable for general industrial applications.
Key electrical specifications include a current rating of 5A, a voltage rating of 240 VAC and 50 VDC, and a maximum breaking capacity of 60A. The breaker type is thermal, with a push-to-reset actuator. It offers an operational life of 1000 cycles at 2x In and has an insulation resistance of a minimum of 100 MΩ at 500VDC.
This circuit breaker is designed for panel mounting. It operates within a maximum ambient temperature of 60°C. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Referenced standards include CSA22.2 No. 235.04 and UL-1077 for conditional short circuit capacity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 5A.
The voltage ratings are 240 VAC and 50 VDC.
It has a push to reset actuator.
The maximum operating temperature is 60°C.
Yes, it is RoHS3 Compliant.
