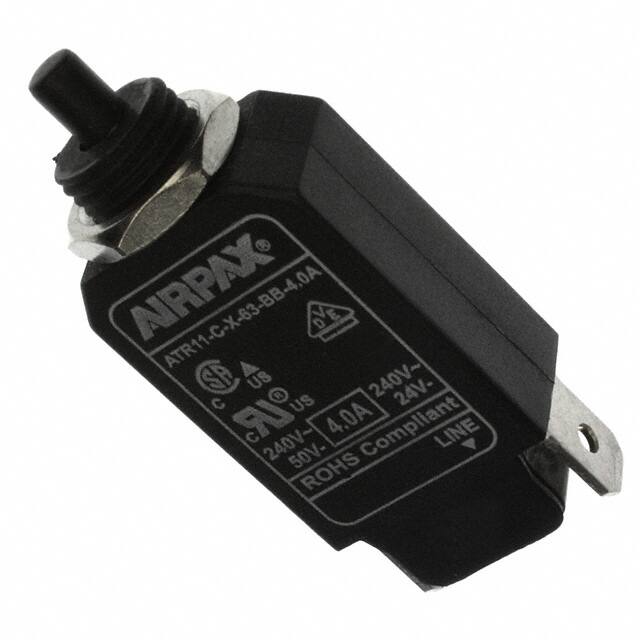

The Sensata ATR11-C-X-63-BB-4.0A is a single-pole, thermally operated circuit protector from the ATR11 series. It provides reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 4A, with a broader protection range of 0.1 to 16.0 Amps available across the series. The voltage ratings are 240 VAC and 50 VDC, with specific VDE ratings of 240 VAC and 24 VDC also noted. The maximum breaking capacity is 60A for ratings above 6A.
This circuit breaker features a thermal tripping method and a push-to-reset actuator type. It is designed for panel mounting and is suitable for general industrial applications, conforming to CSA22.2 standards. The operational life is rated for 1000 cycles at 2x the rated current.
The device operates within a maximum ambient temperature of 60°C. It is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The specific current rating for this part is 4A, although the ATR11 series offers a protection range from 0.1 to 16.0 Amps.
The voltage ratings are 240 VAC and 50 VDC. Specific VDE ratings include 240 VAC and 24 VDC.
This circuit breaker is designed for panel mounting.
It features a push-to-reset actuator type.
The maximum operating ambient temperature is 60°C.
Yes, it is RoHS3 compliant.
