| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

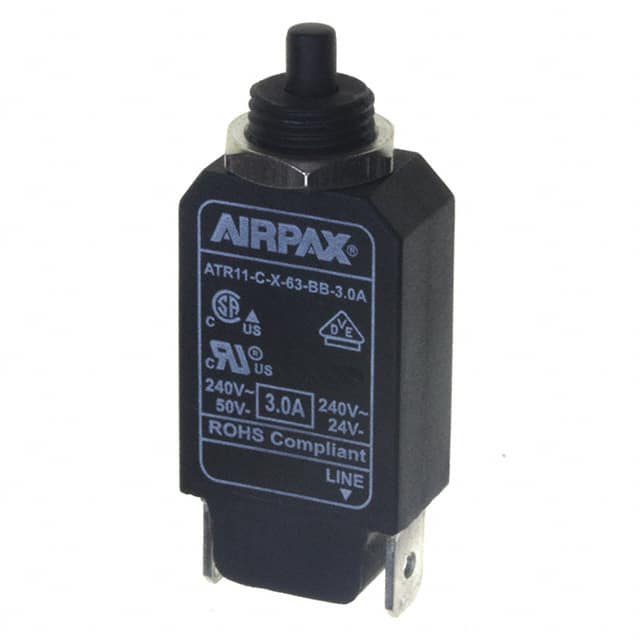

The Sensata ATR11-C-X-63-BB-3.0A is a single-pole, thermally operated overload protector from the Airpax™ ATR11 product family. It features a snap-acting trip mechanism for reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 3A, a voltage rating of 240 VAC and 50 VDC, and a maximum breaking capacity of 8x In for currents below 6A. The tripping current code is TC2, and it has a conditional short circuit capacity of 1KA. The operational life is rated for 1000 cycles at 2x In.
This circuit breaker is designed for general industrial applications and features a panel mount configuration with a push-to-reset actuator. It operates within a maximum ambient temperature of 60°C (140°F).
The ATR11 series is RoHS3 compliant and designed for reliable performance in demanding environments. It is suitable for protecting various types of equipment from overcurrent conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A.
The voltage rating is 240 VAC and 50 VDC.
It uses a push-to-reset actuator.
The maximum operating temperature is 60°C (140°F) ambient.
Yes, it is RoHS3 Compliant.
