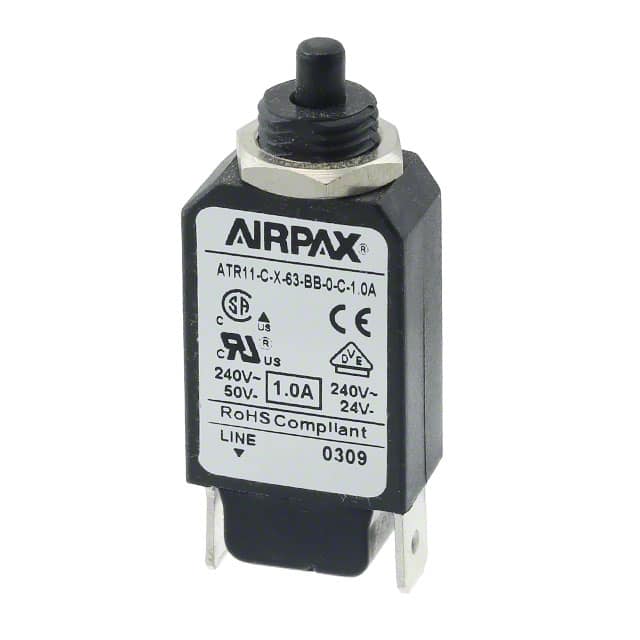

The Sensata ATR11 Series thermal circuit protector, specifically the ATR11-C-X-63-BB-1.0A model, is a single-pole device designed for reliable overload protection. It operates on a thermal tripping mechanism and features a trip-free operation.
Key electrical specifications include a current rating of 1A, a voltage rating of 240VAC and 50VDC, and a maximum breaking capacity of 60A. The device offers a conditional short circuit capacity of 1KA. It has an operational life of 1000 cycles at 2x In and a maximum operating temperature of 60°C.
This circuit breaker is designed for panel mounting and features a push-to-reset actuator. It is compliant with RoHS3 standards and has an MSL rating of 1.
The ATR11 series is suitable for general industrial applications, providing essential protection against overcurrent conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1A.
The voltage rating is 240VAC and 50VDC.
It is a single pole circuit breaker.
It is a thermal circuit breaker.
The mounting type is Panel Mount.
The maximum operating temperature is 60°C.
Yes, it is RoHS3 Compliant.
