| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Function | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

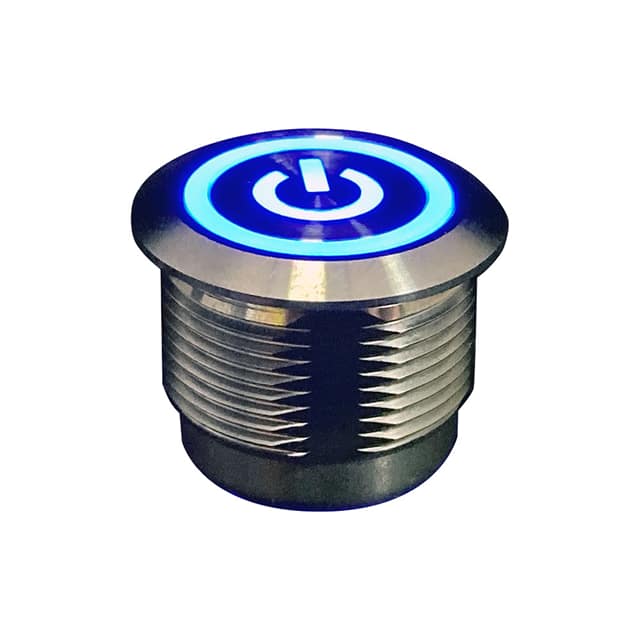

The C&K Components ATPS19SL0000M0SA04G is an anti-vandal, short-body, sealed pushbutton switch designed for durability and resistance to deliberate damage. It features a momentary action with a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement.
Key electrical specifications include a contact rating of 2A at 36 Vdc, an insulation resistance of 1,000 MΩ min. at 500 VDC, and an initial contact resistance of 50 mΩ max. at 1A 12 VDC. The switch is built to withstand 1,000,000 mechanical lifecycles and offers a total travel of 1.8 ± 0.2mm with an operating force of 4.5N ± 1.5N.
Environmental resilience is a core feature, with IP67 sealing for dust and water protection, and an operating temperature range of -20°C to 70°C. The bushing is constructed from stainless steel, contributing to its anti-vandal properties. The mounting type is threaded front panel mount with a panel cutout diameter of 19.20mm.
This switch is suitable for applications requiring robust performance in demanding environments, such as alarm systems, security systems, intercoms, and vending machines.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 2A / 36 Vdc.
The operating temperature range is -20°C to 70°C.
The ingress protection rating is IP67.
The mechanical lifespan is 1,000,000 cycles.
It uses a threaded front panel mount.
Yes, it is RoHS3 Compliant.
