Mfr Part #:

ATPGGBL5R2580A

Name: ATPGGBL5R2580A
Brand: YIC
SKU: ATPGGBL5R2580A

Mfr Name: YIC

Description:

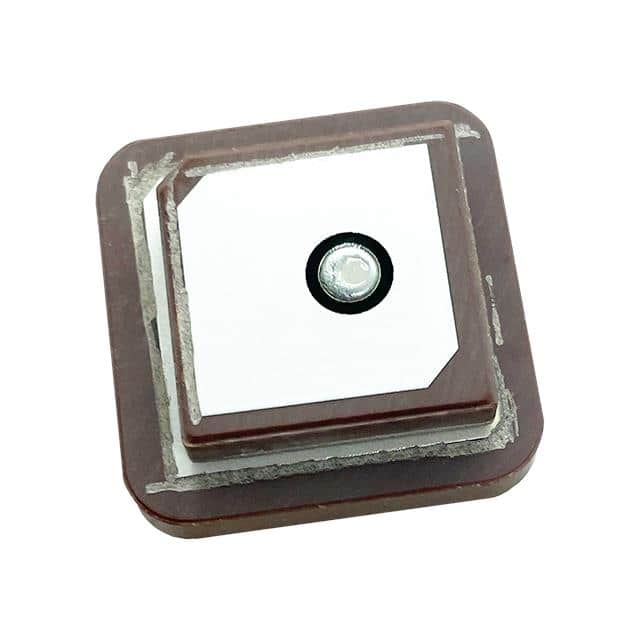

RF ANT GPS L1+L5/GLONASS/BEIDOU

Stock on Request

ATPGGBL5R2580A Description

Short technical summary and product information.

RF ANT GPS L1+L5/GLONASS/BEIDOU

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	YIC
Antenna Type	Ceramic Patch
Applications	Beidou, GLONASS, GPS
Frequency (Center	1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency Range	1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz
Gain	0.5dBi, 2.4dBi, 0.6dBi, 0.6dBi, 3.4dBi
Height (Max)	0.315" (8.00mm)
Mounting Type	Adhesive
Number of Bands	5
RF Family	Navigation
Termination	Pin
VSWR	1.8
