| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Marking | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

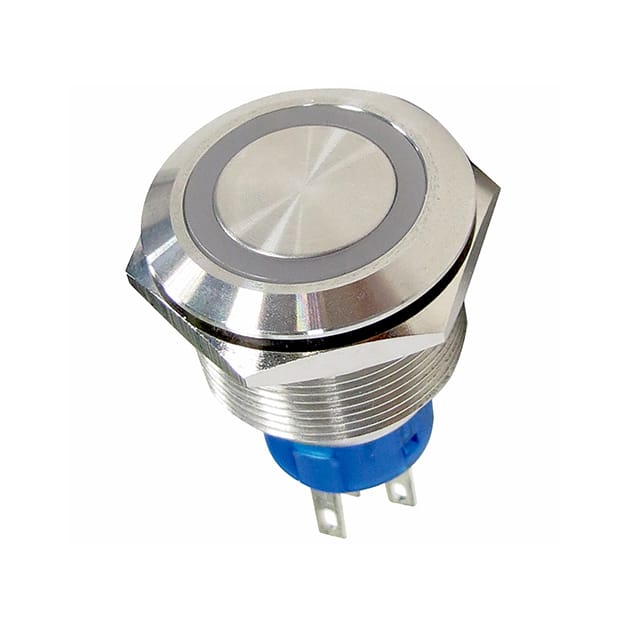

This C&K Components ATP22-SL3-312-B0SA-03Q is an anti-vandal, illuminated pushbutton switch designed for robust applications. It features a panel mount design with a 22.20mm diameter cutout and a sealed construction providing IP67 ingress protection against dust and water.
The switch operates within a temperature range of -20°C to 55°C and has a 250V voltage rating with a 3A current capacity. It utilizes a solder or 0.110" (2.8mm) quick connect termination style. The actuator is a round, flush button with no marking, and the illumination is provided by a red LED operating at a nominal 12 VDC.
Key specifications include a SPDT circuit configuration and an On-Mom switch function. The silver-colored housing contributes to its durable and professional appearance, making it suitable for various industrial and public interface applications where reliability and resistance to tampering are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 55°C.
The switch is rated for 250V and 3A (AC/DC).
The ingress protection rating is IP67, meaning it is dust-tight and waterproof.
It features red LED illumination with a nominal operating voltage of 12 VDC.
This switch is designed for panel mounting with a circular cutout of 22.20mm diameter.
