| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

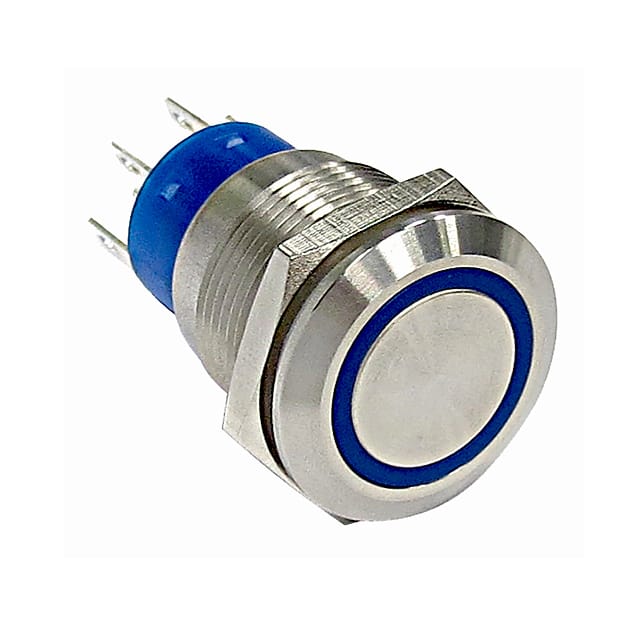

The C&K Components ATP19 Series pushbutton switch, part number ATP19-SL3-624-B0DA-03Q, is an anti-vandal and illuminated type designed for demanding applications. It features a robust stainless steel construction and meets IP67 sealing and IK10 impact resistance ratings, making it suitable for use in equipment subjected to harsh conditions or potential vandalism.
This switch operates with a momentary function and has a DPDT circuit. It is rated for 3A at 250V AC/DC and features a green LED illumination with a nominal voltage of 24 VDC. The panel cutout diameter is 19.20mm, and it is designed for front panel mounting.
Key specifications include a mechanical life of up to 1,000,000 cycles for momentary operation and an operating temperature range of -20°C to 55°C. The termination style is solder and quick connect, suitable for 0.110" (2.8mm) connections. The actuator is round, flush, and has no marking.
Applications for this series include control panels, industrial instruments, lifts, communication equipment, and alarm/security systems. Its durable design ensures reliable performance in extreme outdoor environments and situations where abuse is possible.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.07 | $26.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 55°C.
This switch has an ingress protection rating of IP67.
The switch is rated for 3A at 250V AC/DC.
This switch features green LED illumination with a nominal voltage of 24 VDC.
The mechanical life is 1,000,000 cycles for momentary operation and 500,000 cycles for self-lock.
The required panel cutout diameter is 19.20mm.
