| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

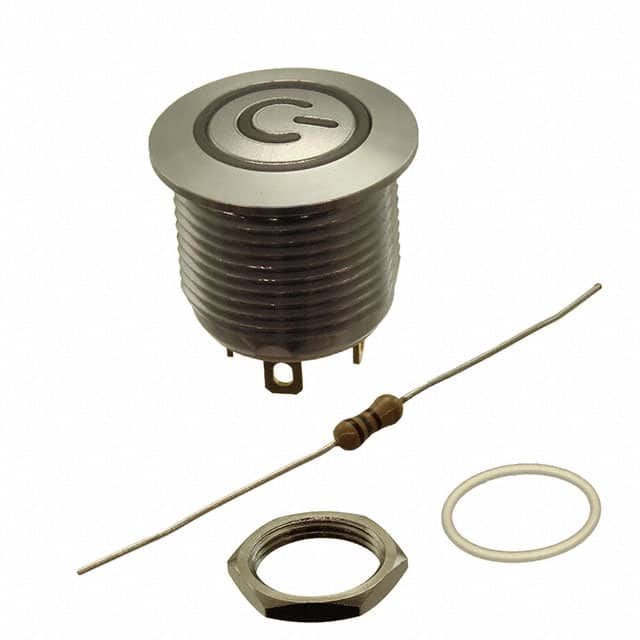

This C&K Components ATP16-DL5-306-B4SA-04G is an anti-vandal, illuminated pushbutton switch designed for robust applications. It features a panel mount, front mounting type with a standard 16mm cutout diameter.
The switch operates within a temperature range of -20°C to 70°C and provides a voltage rating of 36V with a current capacity of 2A (DC). The circuit configuration is SPST-NO (Single Pole Single Throw - Normally Open). Illumination is provided by an LED in red, with a nominal voltage of 6 VDC.
Key features include its anti-vandal and illuminated design, with a domed, round button actuator marked with a power symbol. The ingress protection rating is IP67, ensuring dust-tight and waterproof performance. Termination is achieved via solder lugs.
This component is suitable for applications requiring durable and visible switching solutions, such as industrial control panels, access control systems, and public interface equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 70°C.
The voltage rating is 36 V.
The current rating is 2A (DC).
The ingress protection rating is IP67 - Dust Tight, Waterproof.
The nominal illumination voltage is 6 VDC.
