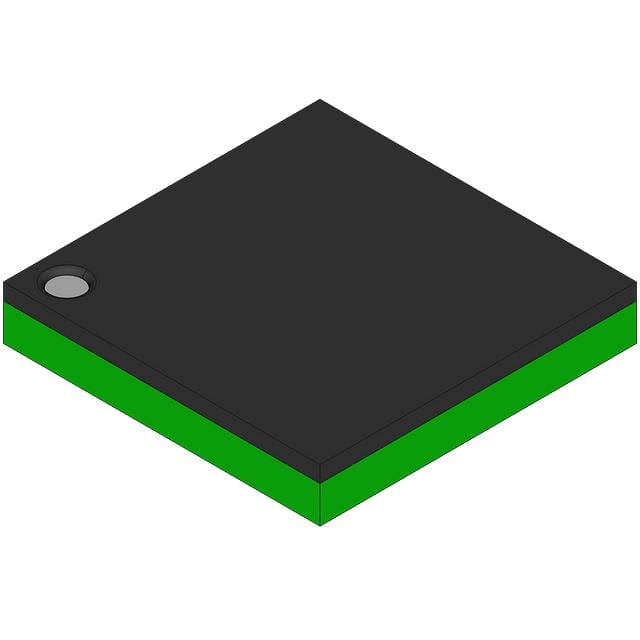

ATMXT224-CCU The Atmel ATMXT224-CCU is a 224-node touchscreen controller designed for various applications. It features a 12-bit resolution and an I2C interface for seamless integration.
Mfr Part #:

ATMXT224-CCU

Available from 2 distributors
Mfr Name: Atmel
Atmel
The Atmel ATMXT224-CCU is a 224-node touchscreen controller designed for various applications. It features a 12-bit resolution and an I2C interface for seamless integration.
✓ Total Stock: 31,122 pcs

ATMXT224-CCU Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
30,133 pcs
On Request
30133 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
989 pcs
On Request
989 pcs On Request 1 On Request On Request 2021+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATMXT224-CCU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Interface
Mounting Type
Operating Temperature
Resolution (Bits)
Supplier Device Package
Touchscreen
Voltage
Voltage Reference
View Similar Products (0)

ATMXT224-CCU Description

Short technical summary and product information.

The ATMXT224-CCU from Atmel is a high-performance touchscreen controller belonging to the MaXTouch family. This device offers a 224-node capability, enabling precise touch detection for a wide range of applications. It operates with a 12-bit resolution, providing detailed touch input.



The controller utilizes an I2C interface for communication, ensuring compatibility with many microcontrollers and processors. It supports operating voltages between 1.71V and 3.47V, with a voltage reference that is internally generated. The ATMXT224-CCU is specified for operation within a temperature range of -40°C to 85°C (TA).



Designed for modern electronic devices, the ATMXT224-CCU comes in a compact 49-UFBGA (5x5) package, suitable for surface mounting. This mounting type is ideal for space-constrained designs. The device is RoHS3 compliant, meeting environmental standards for electronic components.

ATMXT224-CCU Quick Information

Product Type: Touch Screen Controller
Series: MAXTOUCH
Canonical Name: ATMXT224-CCU 224-Node Touchscreen Controller
Subcategory: Data Acquisition

ATMXT224-CCU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ATMXT224-CCU Features

  • 224-node touchscreen controller.
  • 12-bit resolution for precise input.
  • I2C interface for easy integration.
  • Operates from 1.71V to 3.47V.
  • Surface mount 49-UFBGA package.

ATMXT224-CCU Applications

  • Ideal for portable electronic devices.
  • Suitable for industrial control panels.
  • Used in automotive infotainment systems.
  • Applicable for smart home interfaces.

ATMXT224-CCU FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the ATMXT224-CCU?

The ATMXT224-CCU operates between 1.71V and 3.47V.

What package type is the ATMXT224-CCU available in?

The ATMXT224-CCU is available in a 49-UFBGA (5x5) package.

What is the operating temperature range for the ATMXT224-CCU?

The ATMXT224-CCU operates from -40°C to 85°C (TA).

What is the resolution of the ATMXT224-CCU touchscreen controller?

The ATMXT224-CCU has a resolution of 12 bits.

What interface does the ATMXT224-CCU use?

The ATMXT224-CCU uses an I2C interface.
