| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41,563 pcs
|
41563 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Width |

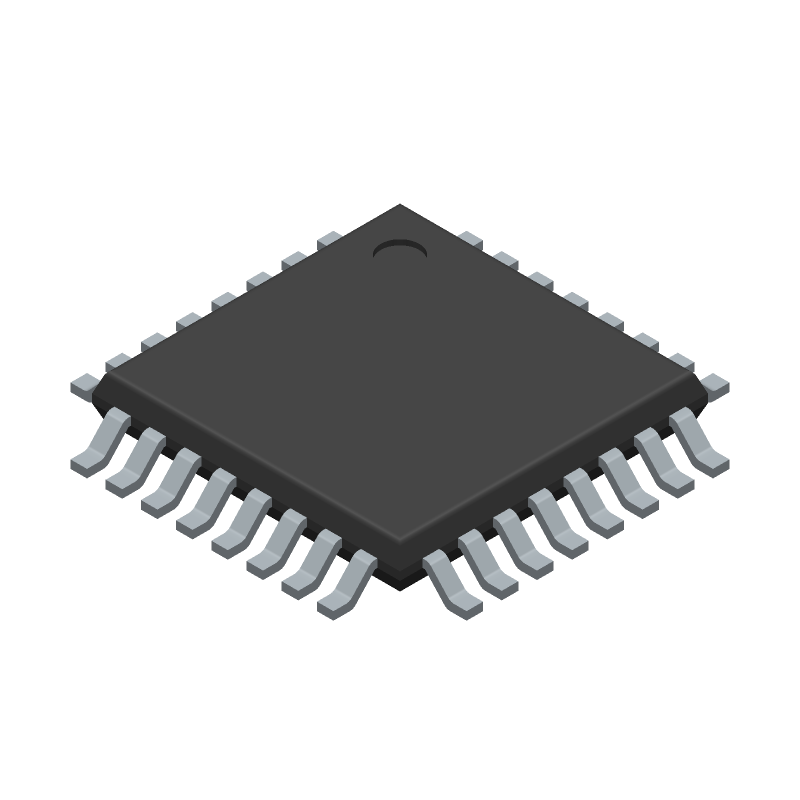

The ATMEGA88PA-AUR is an 8-bit microcontroller based on the AVR enhanced RISC architecture. It features 8KB of in-system self-programmable Flash memory, 1KB SRAM, and 512 bytes of EEPROM with high endurance (10,000 Flash write/erase cycles, 100,000 EEPROM cycles). The device operates at a maximum clock frequency of 20MHz, delivering up to 20 MIPS throughput.
The microcontroller includes 23 programmable I/O lines, an 8-channel 10-bit analog-to-digital converter (ADC), six PWM channels, and serial communication interfaces (I²C, SPI, UART/USART). It also integrates a brown-out detect/reset, power-on reset, and watchdog timer. The device is available in a 32-pin TQFP package (7x7mm, 0.80mm pitch) and supports surface mount assembly.
Designed for industrial temperature ranges (-40°C to +85°C) and supply voltages from 1.8V to 5.5V, the ATMEGA88PA-AUR is suitable for a wide range of embedded control applications. Its low-power features include multiple sleep modes with typical power-down current of 0.1µA at 1.8V.
The ATMEGA88PA-AUR operates from 1.8V to 5.5V.
It comes in a 32-TQFP (7x7mm) surface-mount package with 32 terminals and a 0.80mm lead pitch.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant as verified from the manufacturer page.
It has 8KB (4K x 16) of Flash program memory.
The maximum clock frequency is 20MHz at 4.5V to 5.5V supply.
It has 23 general-purpose I/O lines.
