ATMEGA48V-10AU The ATMEGA48V-10AU is an 8-bit AVR microcontroller from Microchip Technology featuring 4KB of FLASH program memory and operating at speeds up to 10MHz. It is suitable for low-power applications with a wide operating voltage range.
Mfr Part #:

ATMEGA48V-10AU

Available from 4 distributors
Mfr Name: Atmel
Atmel
The ATMEGA48V-10AU is an 8-bit AVR microcontroller from Microchip Technology featuring 4KB of FLASH program memory and operating at speeds up to 10MHz. It is suitable for low-power applications with a wide operating voltage range.
✓ Total Stock: 11,177 pcs
$ Price Range: $5.55

ATMEGA48V-10AU Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
8,964 pcs
On Request
8964 pcs On Request 1 On Request On Request 0636+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,006 pcs
On Request
2006 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
157 pcs
On Request
157 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATMEGA48V-10AU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connectivity
Core Processor
Core Size
EEPROM Size
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of I/O
Operating Voltage
Peripherals
Power Consumption
Program Memory Size
Program Memory Type
RAM Size
Speed
Storage Temperature
Tape & Reel
Temperature Range
Watchdog Timer
View Similar Products (0)

ATMEGA48V-10AU Description

Short technical summary and product information.

The ATmega48V-10AU is a low-power, high-performance 8-bit AVR microcontroller based on the enhanced RISC architecture. It executes powerful instructions in a single clock cycle, achieving throughputs close to 1 MIPS per MHz. This device is ideal for system designers looking to optimize for power consumption versus processing speed.



Key features include 4KB of In-System Self-Programmable Flash program memory, 256 Bytes of EEPROM, and 512 Bytes of Internal SRAM. It offers a wide operating voltage range from 1.8V to 5.5V and operates within a temperature range of -40°C to 85°C. The microcontroller supports various communication interfaces including I2C, SPI, and USART, along with peripherals like two 8-bit and one 16-bit Timer/Counters, six PWM channels, and an 8-channel 10-bit ADC.



This microcontroller is available in a 32-lead TQFP package, suitable for surface mount applications. Its design emphasizes low power consumption, with active mode drawing only 0.3mA at 1MHz and 1.8V, and power-down mode consuming as little as 0.1μA.

ATMEGA48V-10AU Quick Information

Product Type: Microcontroller
Series: ATmega
Canonical Name: ATmega48V-10AU 8-bit AVR Microcontroller
Subcategory: 8-bit AVR

ATMEGA48V-10AU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ATMEGA48V-10AU Estimated Pricing

Qty Low High
1+ $5.55 $5.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

ATMEGA48V-10AU Features

  • 8-bit AVR microcontroller with RISC architecture.
  • 4KB FLASH program memory and 512 Bytes SRAM.
  • Operates from 1.8V to 5.5V supply voltage.
  • Features I2C, SPI, and USART communication interfaces.

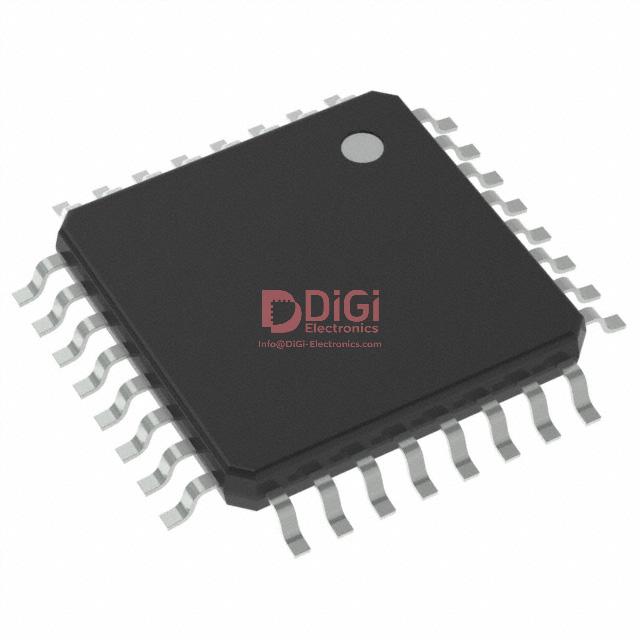

  • Available in a 32-lead TQFP package.

ATMEGA48V-10AU Applications

  • Ideal for low-power embedded systems.
  • Suitable for applications requiring multiple timers.
  • Used in systems needing serial communication.
  • Supports touch sensing applications.

ATMEGA48V-10AU FAQs

5 frequently asked questions generated from this part’s specifications.
What is the program memory size of the ATMEGA48V-10AU?

The ATMEGA48V-10AU has 4KB of In-System Self-Programmable Flash program memory.

What is the operating voltage range for the ATMEGA48V-10AU?

The ATMEGA48V-10AU operates within a voltage range of 1.8V to 5.5V.

What package type is the ATMEGA48V-10AU supplied in?

The ATMEGA48V-10AU is supplied in a 32-lead TQFP package.

What is the speed grade of the ATMEGA48V-10AU?

The speed grade for the ATMEGA48V/88V/168V series is 0-4MHz at 1.8V-5.5V, and 0-10MHz at 2.7V-5.5V.

How many I/O pins does the ATMEGA48V-10AU have?

The ATMEGA48V-10AU features 23 programmable I/O lines.
