| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,067 pcs
|
15067 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Voltage |

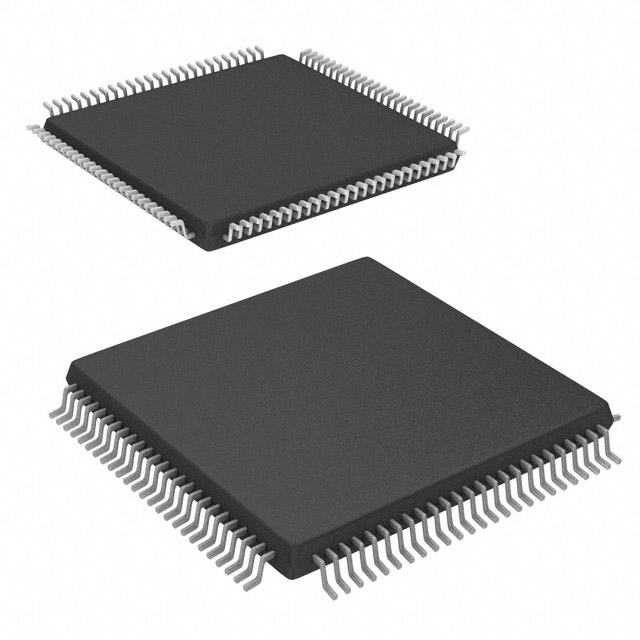

The ATMEGA3290P-20AU is a high-performance, low-power 8-bit AVR RISC-based microcontroller from Microchip Technology. It features 32KB of in-system self-programmable Flash memory, 2KB of SRAM, and 1KB of EEPROM. The device operates at a maximum speed of 20MHz, delivering up to 20 MIPS throughput.
Connectivity options include SPI, USART, and USI serial interfaces. The microcontroller integrates an 8-channel, 10-bit ADC, four PWM channels, and a programmable watchdog timer. Additional peripherals include brown-out detection, power-on reset, an LCD driver supporting 4x40 segments, and five sleep modes for low-power operation.
The device supports a wide supply voltage range of 2.7V to 5.5V and operates over an industrial temperature range of -40°C to 85°C. It is available in a 100-TQFP package (14x14mm) with 69 programmable I/O lines, making it suitable for applications requiring multiple I/O and direct LCD interface.
2.7V to 5.5V.
100-TQFP (14x14mm).
-40°C to 85°C.
RoHS3 compliant (unverified).
8-bit AVR RISC.
32KB.
SPI, UART/USART, USI.
