| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,815 pcs
|
27815 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

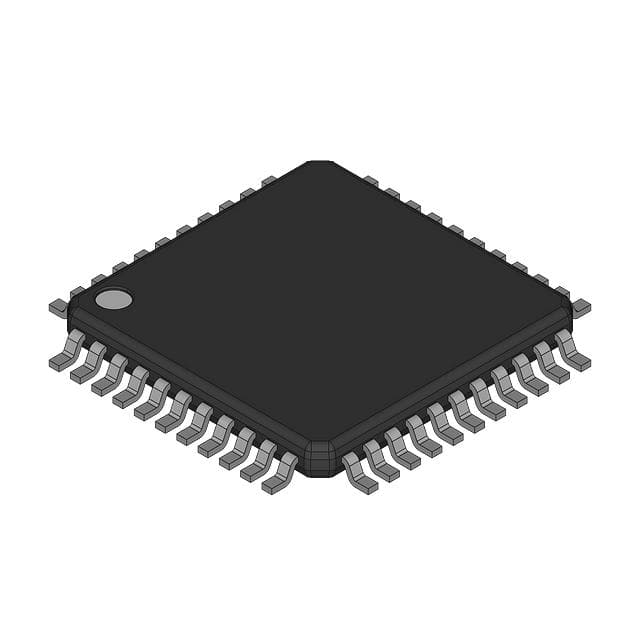

The ATMEGA324P-20AU is an 8-bit AVR microcontroller from Atmel, based on the enhanced RISC architecture. It features 32KB of in-system self-programmable Flash memory, 2KB of internal SRAM, and 1KB of EEPROM. The device operates at a maximum speed of 20MHz, delivering up to 20 MIPS throughput.
This microcontroller includes a rich set of peripherals: two 8-bit timer/counters, one 16-bit timer/counter, six PWM channels, an 8-channel 10-bit ADC, and a real-time counter. Connectivity options include I2C, SPI, and two USART interfaces. It also features a JTAG interface for boundary-scan and on-chip debug.
The device is supplied in a 44-TQFP (10x10mm) surface-mount package and operates over a supply voltage range of 2.7V to 5.5V. It is designed for industrial temperature ranges from -40°C to 85°C.
The operating temperature range is -40°C to 85°C.
The supply voltage range is 2.7V to 5.5V.
It uses a 44-TQFP surface-mount package with dimensions 10x10mm.
It has 32KB of Flash program memory.
It supports I2C, SPI, and UART/USART interfaces.
Yes, it has an internal oscillator.
The maximum clock speed is 20MHz.
