| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,200 pcs
|
20200 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Interface | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Oscillator Type | |
| Peripherals | |
| RAM Size | |
| Watchdog Timer |

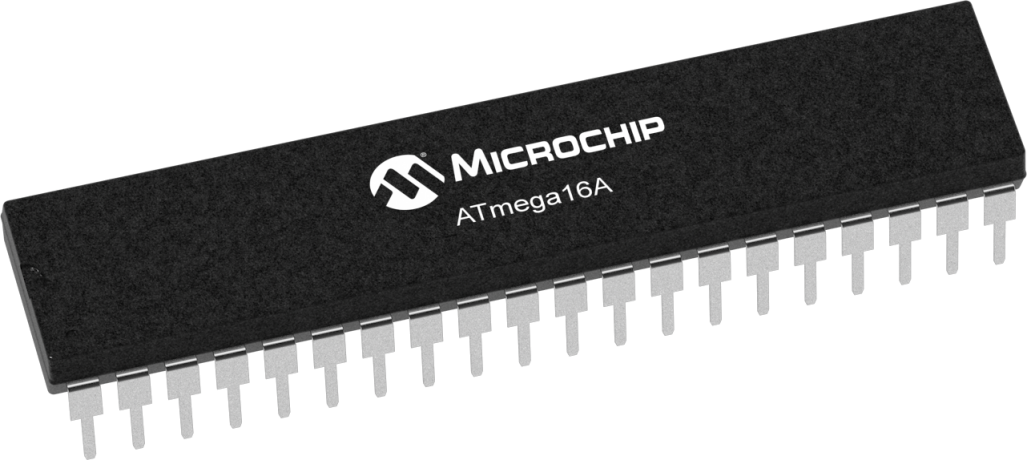

The ATMEGA16A-PU is a high-performance, low-power 8-bit AVR microcontroller from Microchip Technology. It boasts an advanced RISC architecture with 131 powerful instructions, most executing in a single clock cycle, and an on-chip 2-cycle multiplier. This microcontroller offers 16KBytes of in-system self-programmable Flash program memory, 512 Bytes of EEPROM, and 1KByte of internal SRAM.
Key peripheral features include two 8-bit Timer/Counters, one 16-bit Timer/Counter, four PWM channels, and an 8-channel, 10-bit ADC. It supports byte-oriented Two-wire serial interface, programmable serial USART, and Master/Slave SPI serial interface. The device operates within a voltage range of 2.7V to 5.5V and has speed grades up to 16MHz.
Packaged in a 40-pin DIP for through-hole mounting, the ATMEGA16A-PU is suitable for a wide range of embedded applications. Its operating temperature range is -40°C to 85°C, making it robust for various environmental conditions. The microcontroller also includes special features like Power-on Reset, Programmable Brown-out Detection, and multiple sleep modes for power efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ATMEGA16A-PU has 16KBytes of Flash program memory and 1KB of Internal SRAM.
The ATMEGA16A-PU operates at a maximum frequency of 16MHz.
The ATMEGA16A-PU features 32 programmable I/O lines.
The ATMEGA16A-PU is available in a 40-pin DIP package for through-hole mounting.
The ATMEGA16A-PU operates within a voltage range of 2.7V to 5.5V.
Yes, the ATMEGA16A-PU includes a programmable watchdog timer.
The ATMEGA16A-PU supports Two-wire serial interface, programmable serial USART, and Master/Slave SPI serial interface.
