Mfr Part #:

ATGGLTEW84018-2.0BP

Name: ATGGLTEW84018-2.0BP
Brand: YIC
SKU: ATGGLTEW84018-2.0BP

Mfr Name: YIC

Description:

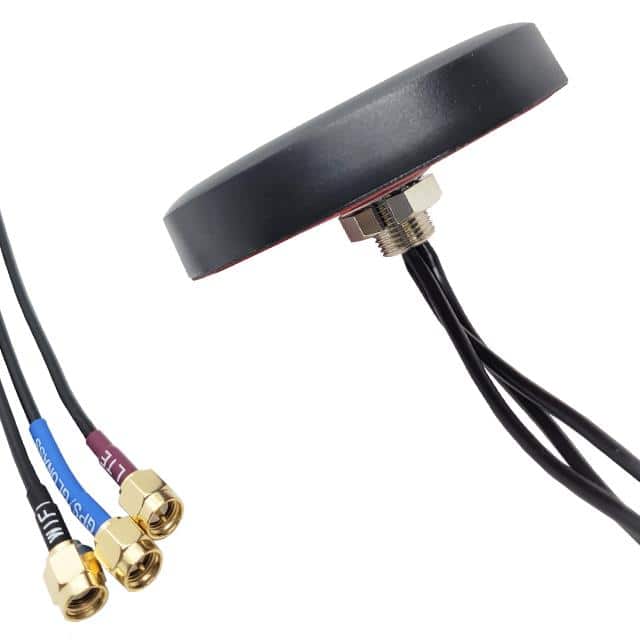

3IN1 GNSS/4G/WIFI ANTENNA SCREW

Stock on Request

ATGGLTEW84018-2.0BP Description

Short technical summary and product information.

3IN1 GNSS/4G/WIFI ANTENNA SCREW

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	YIC
Antenna Type	Module
Applications	4G, GPS, GNSS, LTE, Wi-Fi
Features	Cable - 3m, LNA
Frequency (Center	829MHz, 1.5925GHz, 2.2GHz, 2.44175GHz, 5.3625GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz
Gain	2dBi, 2dBic, 2dBi, 3dBi, 3dBi
Height (Max)	0.642" (16.30mm)
Ingress Protection	IP65, IP66
Mounting Type	Screw Mount
Number of Bands	5
RF Family	Cellular, Navigation, WiFi
Termination	RP-SMA Male (1), SMA Male (2)
VSWR	1.5, 2
