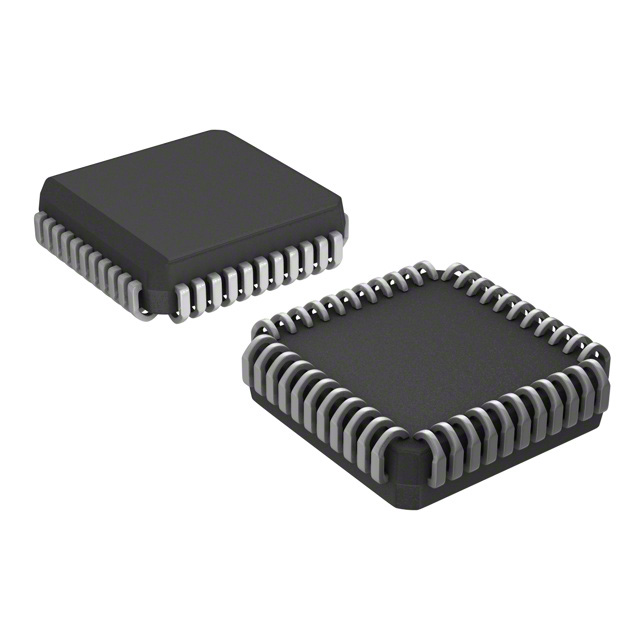

ATF2500C-20KM The ATF2500C-20KM is a 24-macrocell CPLD from Microchip Technology with a 20ns maximum propagation delay. It operates at 4.5V to 5.5V and comes in a 44-JLCC surface mount package.
Mfr Part #:

ATF2500C-20KM

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The ATF2500C-20KM is a 24-macrocell CPLD from Microchip Technology with a 20ns maximum propagation delay. It operates at 4.5V to 5.5V and comes in a 44-JLCC surface mount package.
✓ Total Stock: 21,020 pcs

ATF2500C-20KM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
21,020 pcs
On Request
21020 pcs On Request 1 On Request On Request 2020+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATF2500C-20KM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
ESD Protection
Lead Style
Mounting Type
Number of I
Number of Macrocells
Operating Temperature
Programmable Type
SVHC Present
Supplier Device Package
Voltage Supply
View Similar Products (0)

ATF2500C-20KM Description

Short technical summary and product information.

The ATF2500C-20KM is a high-performance CMOS electrically-erasable programmable logic device (CPLD) from Microchip Technology. It features 24 flexible output macrocells with 48 flip-flops, 416 product terms, and a fully connected logic array. The device offers a maximum pin-to-pin delay of 20ns (with 15ns typical for 5V operation) and operates from a 4.5V to 5.5V supply voltage.



This CPLD is in-system programmable and supports D- or T-type flip-flops with product term or direct input pin clocking. It includes 8 synchronous product terms, individual asynchronous reset per macrocell, and OE control per macrocell. The device provides 2000V ESD protection and 200mA latch-up immunity, with 10-year data retention.



The ATF2500C-20KM is housed in a 44-lead CLCC (J-Lead) surface mount package (44-JLCC, 16.63x16.63mm). It is designed for commercial, industrial, and military temperature ranges (-55°C to 125°C case temperature). The device is backward compatible with ATV2500B/BQ and ATV2500H software.

ATF2500C-20KM Quick Information

Product Type: CPLD (Complex Programmable Logic Device)
Canonical Name: ATF2500C-20KM CPLD
Subcategory: Complex Programmable Logic Devices

ATF2500C-20KM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ATF2500C-20KM Features

  • 24 macrocells with 48 flip-flops.
  • 416 product terms in fully connected array.
  • 20ns maximum propagation delay.
  • In-system programmable with 5V supply.
  • 44-JLCC surface mount package.

ATF2500C-20KM Applications

  • Ideal for glue logic and state machines.
  • Used in industrial control systems.
  • Suitable for military and aerospace applications.
  • Can implement complex combinatorial logic.

ATF2500C-20KM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.5V to 5.5V.

What package does the ATF2500C-20KM come in?

44-CLCC (J-Lead) surface mount package, also known as 44-JLCC (16.63x16.63mm).

What is the operating temperature range?

-55°C to 125°C (case temperature).

Is the ATF2500C-20KM RoHS compliant?

RoHS3 compliant according to existing database, but this is unverified. The datasheet mentions green package options available.

How many macrocells does the ATF2500C-20KM have?

24 macrocells.

What is the propagation delay?

20ns maximum (15ns typical at 5V).

Is the device in-system programmable?

Yes, it is in-system programmable.
