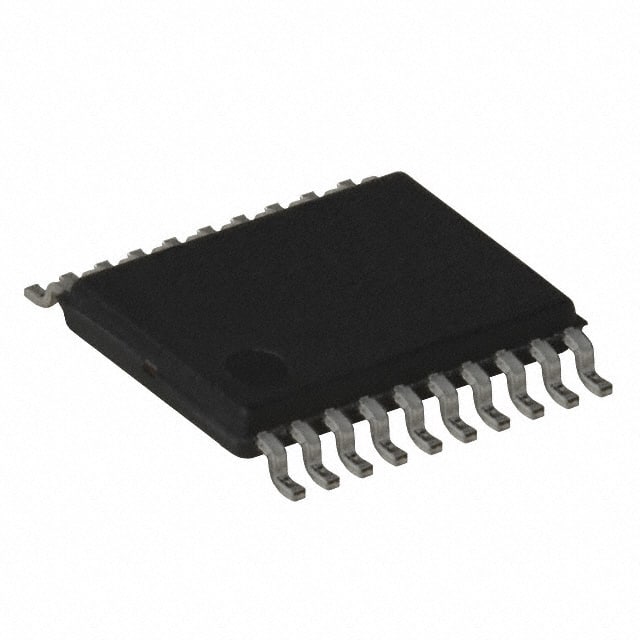

ATF16V8BQL-15XU The ATF16V8BQL-15XU is a high-performance CMOS Electrically-Erasable Programmable Logic Device (EE PLD) from Microchip Technology. It features 8 macrocells, 15ns propagation delay, and operates from a 5V supply in a 20-TSSOP surface mount package.
Mfr Part #:

ATF16V8BQL-15XU

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The ATF16V8BQL-15XU is a high-performance CMOS Electrically-Erasable Programmable Logic Device (EE PLD) from Microchip Technology. It features 8 macrocells, 15ns propagation delay, and operates from a 5V supply in a 20-TSSOP surface mount package.
✓ Total Stock: 25,180 pcs

ATF16V8BQL-15XU Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
22,600 pcs
On Request
22600 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,580 pcs
On Request
2580 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATF16V8BQL-15XU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESD Protection
Mounting Type
Number of Inputs
Number of Macrocells
Operating Temperature Range
Programmable Type
Speed
Supplier Device Package
Voltage
View Similar Products (0)

ATF16V8BQL-15XU Description

Short technical summary and product information.

The ATF16V8BQL-15XU is a high-performance CMOS Electrically-Erasable Programmable Logic Device (EE PLD) from Microchip Technology. It utilizes proven electrically-erasable Flash memory technology and is designed for industrial temperature ranges. The device provides a low-power PLD solution with automatic standby current of 5mA typical, reducing power consumption when idle.



Key specifications include 8 macrocells, 10 inputs, 8 I/O pins, and a maximum propagation delay of 15ns. It operates from a nominal 5V supply with ±10% tolerance. The device supports 20-year data retention and 100 erase/write cycles, ensuring reliable reprogrammability. ESD protection of 2000V and latchup immunity of 200mA enhance robustness in demanding environments.



The ATF16V8BQL-15XU is offered in a 20-TSSOP surface mount package with 20 pins. It is compatible with standard 20-pin PAL architectures and can emulate many 20-pin PALs, making it suitable for a wide range of logic integration tasks. The device is available in a green package option, which is Pb/Halide-free and RoHS compliant.

ATF16V8BQL-15XU Quick Information

Product Type: Programmable Logic Device (PLD)
Series: ATF16V8BQL
Canonical Name: ATF16V8BQL-15XU High-performance EE PLD
Subcategory: Programmable Logic Device

ATF16V8BQL-15XU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb/Halide-free (Green Package)

ATF16V8BQL-15XU Features

  • 8 macrocells for logic integration.
  • 15ns maximum propagation delay.
  • 5V supply with ±10% tolerance.
  • 20-TSSOP surface mount package.
  • Industrial temperature range support.

ATF16V8BQL-15XU Applications

  • Ideal for replacing 20-pin PAL devices.
  • Used in low-power logic applications.
  • Suitable for industrial control systems.
  • Enables complex combinatorial logic functions.

ATF16V8BQL-15XU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the ATF16V8BQL-15XU?

The operating temperature range is -40°C to +85°C (industrial temperature range).

What is the package type of the ATF16V8BQL-15XU?

The device is available in a 20-TSSOP surface mount package (20-TSSOP, 0.173" width, 4.40mm).

Is the ATF16V8BQL-15XU RoHS compliant?

The device is listed as RoHS3 compliant, but this is unverified. The datasheet mentions green package options (Pb/Halide-free/RoHS Compliant).

What is the supply voltage for the ATF16V8BQL-15XU?

The nominal supply voltage is 5V with a tolerance of ±10%.

What is the propagation delay of the ATF16V8BQL-15XU?

The maximum propagation delay is 15ns.

How many macrocells does the ATF16V8BQL-15XU have?

The device has 8 macrocells.

What is the data retention of the ATF16V8BQL-15XU?

The device offers 20 years of data retention.
