| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
304 pcs
|
304 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESD Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Macrocells | |
| Programmable Type | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The ATF16V8B-15JC is an electrically-erasable programmable logic device (EE PLD) from Microchip Technology. It features an industry-standard architecture and emulates many 20-pin PALs. This device offers a maximum pin-to-pin delay of 7.5 ns and operates at a 5V supply voltage.
With 8 macrocells, the ATF16V8B-15JC is suitable for various logic implementation tasks. It supports low-cost, easy-to-use software tools and offers several power-saving options. The device utilizes advanced Flash technology, making it reprogrammable and 100% tested.
Packaged in a 20-PLCC (9x9) format, this EE PLD is designed for surface mounting. It is specified for commercial and industrial temperature ranges and is RoHS3 compliant. The device also boasts 20-year data retention and 100 erase/write cycles.
Key electrical characteristics include a typical active current of 50 mA and a standby current of 55 mA. It also features 2,000V ESD protection and 200 mA latchup immunity, contributing to its high reliability.
The maximum pin-to-pin delay for the ATF16V8B-15JC is 7.5 ns, with a specified speed of 15 ns.
The ATF16V8B-15JC has 8 macrocells.
The ATF16V8B-15JC operates at a 5V supply voltage.

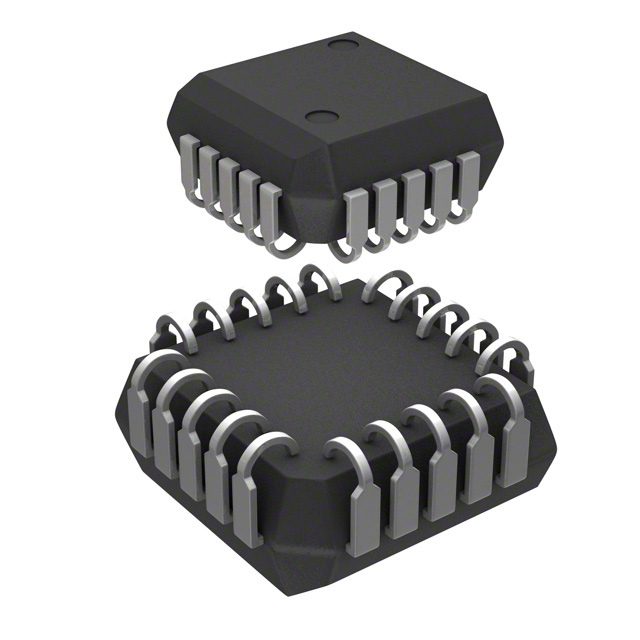

The ATF16V8B-15JC is available in a 20-PLCC (9x9) package for surface mounting.
The ATF16V8B-15JC is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the ATF16V8B-15JC is 1 Unlimited.
