| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,866 pcs
|
20866 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Connector | |
| Applications | |
| Current | |
| Data Rate (Max) | |
| ESD Protection | |
| Features | |
| Frequency | |
| Lead Spacing | |
| Modulation or Protocol | |
| Mounting Type | |
| Operating Temperature | |
| Sensitivity | |
| Supplier Device Package | |
| Voltage |

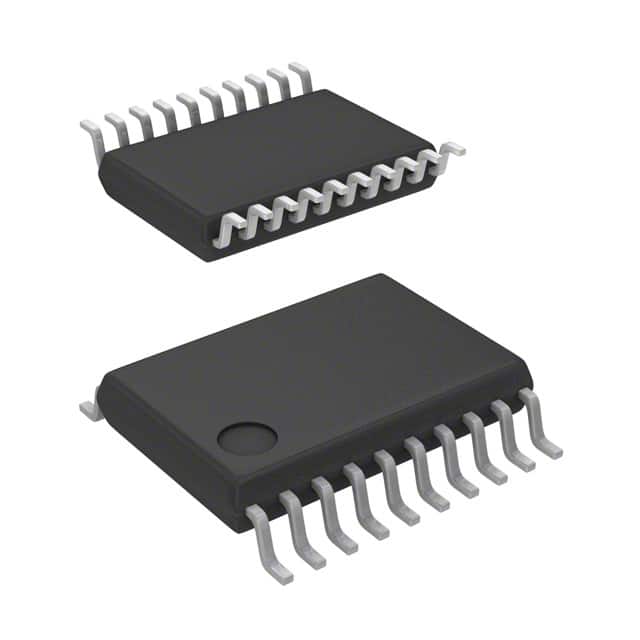

The Microchip Technology ATA8203P3C-TKQW is an industrial UHF ASK/FSK receiver designed for low-cost data transmission systems. It operates in the 315MHz frequency range with a receiving bandwidth of 300kHz and a sensitivity as low as -113dBm for ASK modulation.
This receiver features a supply voltage range of 4.5V to 5.5V and an operating temperature range of -40°C to 85°C. It supports data rates up to 10kbps and includes features like RSSI output and programmable digital noise suppression. The device is housed in a 20-SSO package and is designed for surface mount applications.
Key electrical specifications include a system IIP3 of -24dBm at 315MHz and a 1-dB compression point of -33.7dBm at 315MHz. It also offers 30dB image rejection and a current consumption of 11mA.
Applications for this receiver include general-purpose RF data transmission, aftermarket keyless entry systems, tire pressure monitoring systems, and consumer/industrial remote control applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5V to 5.5V.
It is available in a 20-SSO package, suitable for surface mounting.
The operating temperature range is -40°C to 85°C.
The sensitivity is -113dBm for ASK and -107dBm for FSK, at a data rate of 1.0 to 1.8 kbit/s.
The maximum data rate supported is 10kbps.
