Mfr Part #:

ATA6831C-PIQW

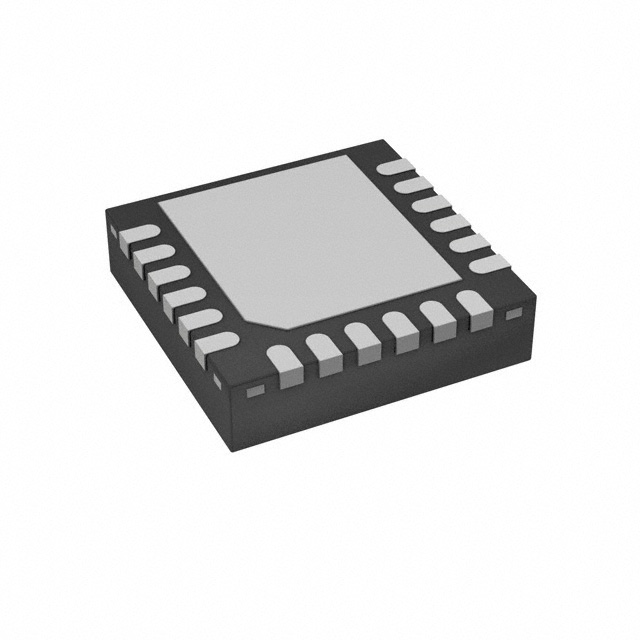

Name: ATA6831C-PIQW
Brand: Microchip Technology
SKU: ATA6831C-PIQW

Description:

IC HALF BRIDGE DRIVER 1A 18VQFN

Stock on Request

ATA6831C-PIQW Description

Short technical summary and product information.

IC HALF BRIDGE DRIVER 1A 18VQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Full Half-Bridge Drivers
Manufacturer Name	Microchip Technology
Applications	Bulbs, DC Motors, Resistors
Current	1A
Fault Protection	Open Load Detect, Over Temperature, Short Circuit, UVLO
Interface	PWM, SPI
Load Type	Inductive, Capacitive, Resistive
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Half Bridge (3)
Rds On (Typ)	800mOhm LS, 800mOhm HS
Supplier Device Package	18-VQFN (4x4)
Technology	Power MOSFET
Voltage	5.6V ~ 40V
