| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,178 pcs
|
40178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Voltage |

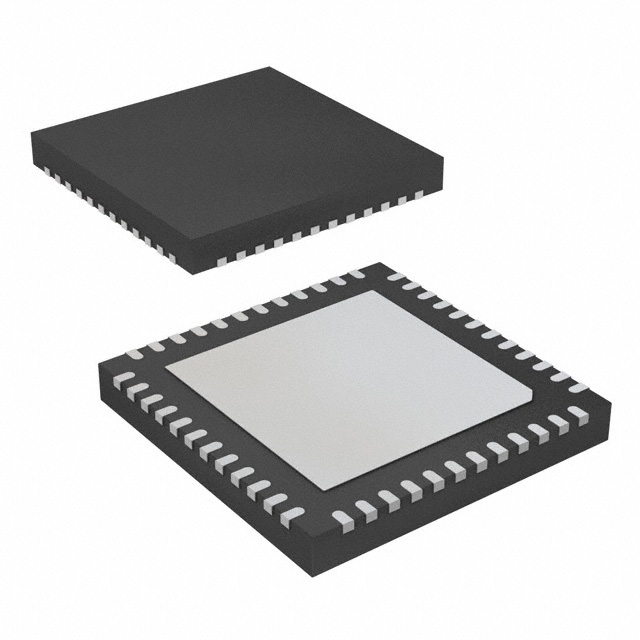

The ATA6613P-PLQW is a System-in-Package (SiP) microcontroller from Microchip Technology, integrating an 8-bit AVR core with a LIN transceiver, 5V regulator, and window watchdog. It is designed for complete LIN-bus slave-node applications in automotive environments. The device combines the ATmega168 microcontroller (16KB flash) with the ATA6624 LIN System Basis Chip in a compact 48-QFN package.
Key electrical specifications include a 16 MHz maximum clock speed, 16KB of flash program memory, 1KB SRAM, and 512 bytes of EEPROM. The microcontroller features 23 general-purpose I/O lines, an 8-channel 10-bit analog-to-digital converter, and supports connectivity interfaces such as I²C, LINbus, SPI, and UART/USART. Peripheral functions include brown-out detection, power-on reset, PWM, and watchdog timer.
The device operates over a supply voltage range of 2.7V to 5.5V and across a temperature range of -40°C to +125°C, making it suitable for harsh automotive conditions. It is mounted using surface-mount technology in a 48-VFQFN exposed pad package measuring 7mm × 7mm. The part is qualified to AEC-Q100 automotive standards.
2.7V to 5.5V.
16 MHz.
48-VFQFN Exposed Pad, supplier device package 48-QFN (7mm x 7mm).
-40°C to 125°C.
16KB (16K x 8).
I²C, LINbus, SPI, UART/USART.
RoHS3 Compliant (unverified).
