| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| SVHC Present | |
| Supplier Device Package | |
| Type | |
| Voltage |
The Microchip Technology ATA6570-GNQW0 is an interface IC featuring transceiver functionality. It is designed for CANbus protocols and offers a half-duplex communication mode. The device supports a data rate of up to 5Mbps, making it suitable for various automotive applications.
Key electrical specifications include a wide supply voltage range from 4.55V to 28V and a receiver hysteresis of 120 mV. The operating temperature range is -40°C to 125°C, ensuring reliable performance in demanding environments. The ATA6570-GNQW0 is qualified under AEC-Q100, indicating its suitability for automotive use.

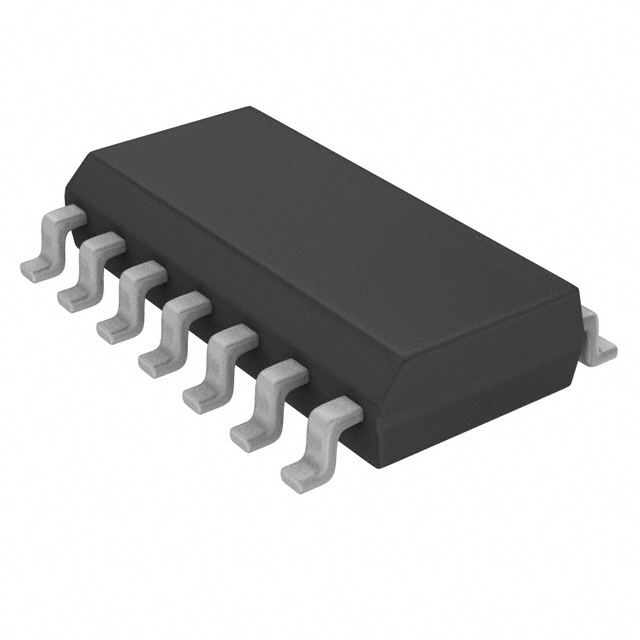

This transceiver is available in a 14-SOIC package, designed for surface mounting. The package dimensions are 0.154 inches (3.90mm) in width. It is supplied in tape and reel packaging, facilitating automated assembly processes.
The operating voltage range is 4.55V to 28V.
The operating temperature range is -40°C to 125°C.
The ATA6570-GNQW0 is available in a 14-SOIC package.
The RoHS status is RoHS3 Compliant.
