Mfr Part #:

AT91SAM9260B-CU

The AT91SAM9260B-CU is a 32-bit ARM926EJ-S microprocessor from Microchip Technology. It operates at 180MHz and is supplied in a 217-LFBGA surface-mount package.

✓ Total Stock: 54,134 pcs

AT91SAM9260B-CU Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	45,000 pcs On Request	45000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	7,333 pcs On Request	7333 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,540 pcs On Request	1540 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	252 pcs On Request	252 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Emiteli ✓ Non-Authorised Inventory information	9 pcs On Request	9 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AT91SAM9260B-CU Description

Short technical summary and product information.

The AT91SAM9260B-CU is a 32-bit microprocessor based on the ARM926EJ-S core, designed by Microchip Technology for embedded control applications. It operates at a maximum clock frequency of 180 MHz and supports a supply voltage range of 1.8V, 2.5V, and 3.3V.

This device integrates memory controllers for SDRAM and SRAM, two USB 2.0 ports, and a 10/100 Mbps Ethernet MAC. It is rated for an operating temperature range of -40°C to 85°C, making it suitable for industrial environments.

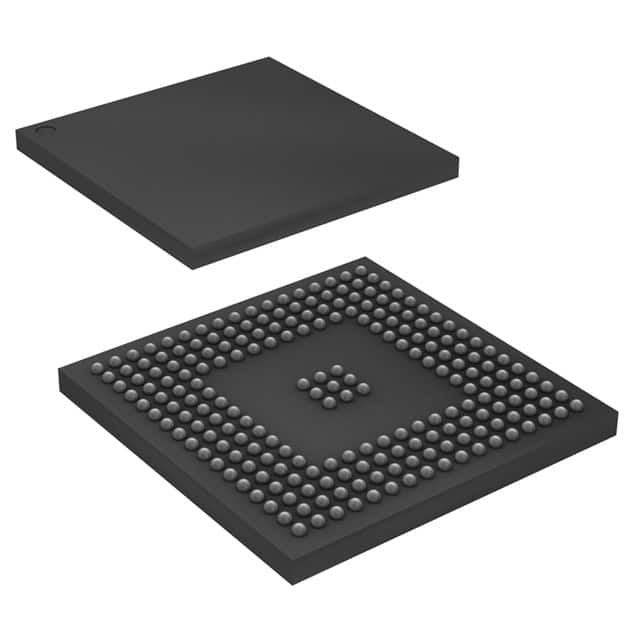

The AT91SAM9260B-CU is offered in a 217-ball LFBGA package with a 15x15 mm body, designed for surface-mount assembly. It does not include graphics acceleration.

AT91SAM9260B-CU Quick Information

Product Type: Microprocessor

Series: AT91SAM9260

Canonical Name: AT91SAM9260B-CU

Subcategory: ARM Microprocessors

AT91SAM9260B-CU Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AT91SAM9260B-CU Features

ARM926EJ-S 32-bit core at 180MHz.
Supports 1.8V, 2.5V, and 3.3V supply.
Includes SDRAM and SRAM controllers.
Dual USB 2.0 and 10/100 Ethernet.
Industrial temperature range -40°C to 85°C.

AT91SAM9260B-CU Applications

Ideal for industrial embedded control systems.
Used in networked automation and IoT devices.
Suitable for low-power portable electronics.
Applicable in wired communication gateways.

AT91SAM9260B-CU FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the AT91SAM9260B-CU?

The AT91SAM9260B-CU is rated for an operating temperature range of -40°C to 85°C.

What package does the AT91SAM9260B-CU come in?

The AT91SAM9260B-CU is supplied in a 217-LFBGA surface-mount package with a 15x15 mm body.

What is the core architecture of the AT91SAM9260B-CU?

The AT91SAM9260B-CU is based on the ARM926EJ-S 32-bit core.

What is the maximum clock frequency of the AT91SAM9260B-CU?

The maximum clock frequency is 180 MHz.

What supply voltages does the AT91SAM9260B-CU support?

The AT91SAM9260B-CU supports supply voltages of 1.8V, 2.5V, and 3.3V.

Does the AT91SAM9260B-CU include Ethernet?

Yes, it includes a 10/100 Mbps Ethernet MAC.

Does the AT91SAM9260B-CU have USB interfaces?

Yes, it has two USB 2.0 ports.

Category	Microprocessors
Manufacturer Name	Microchip Technology
Core Processor	ARM926EJ-S
Ethernet	10/100Mbps
Graphics Acceleration	No
Industrial Grade	Yes
Lead Style	Ball Grid Array (Bga)
Mounting Type	Surface Mount
Number of Cores	1 Core, 32-Bit
Operating Temperature	-40°C ~ 85°C (TA)
RAM Controllers	SDRAM, SRAM
SVHC Present	Not Present
Speed	180MHz
Supplier Device Package	217-LFBGA (15x15)
USB	USB 2.0 (2)
Voltage	1.8V, 2.5V, 3.3V
