| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

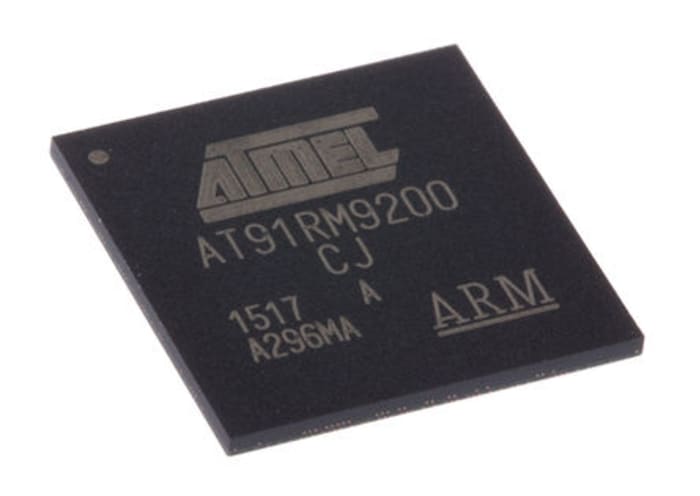

The Microchip AT91RM9200-CJ-002 is a high-performance 32-bit microcontroller based on the ARM920T core, running at a maximum clock frequency of 180MHz. It offers 128KB of ROM for program storage and 48KB of RAM for data.
This microcontroller is equipped with a wide array of peripherals, including Ethernet MAC 10/100 Base-T, USB 2.0 Full Speed Host and Device ports, Multimedia Card Interface (MCI), three Synchronous Serial Controllers (SSC), four Universal Synchronous/Asynchronous Receiver/Transmitters (USART), and Serial Peripheral Interface (SPI).
It operates within a voltage range of 1.65V to 1.95V and has an operating temperature range of -40°C to 85°C. The device features 122 programmable I/O lines and includes internal oscillators. The AT91RM9200-CJ-002 is supplied in a 256-LFBGA package suitable for surface mounting.
Key electrical characteristics include a low standby current of 520 µA and a normal mode current of 24.4 mA. The processor architecture is RISC, with a core size of 16/32-Bit and a data bus width of 32-bit. It also includes two Timer/Counters.
The core processor is ARM920T.
The maximum clock frequency is 180 MHz.
It has 128KB of ROM and 48KB of RAM.
The operating voltage range is 1.65V to 1.95V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 256-LFBGA package.
Yes, it features an Ethernet MAC 10/100 Base-T interface.
