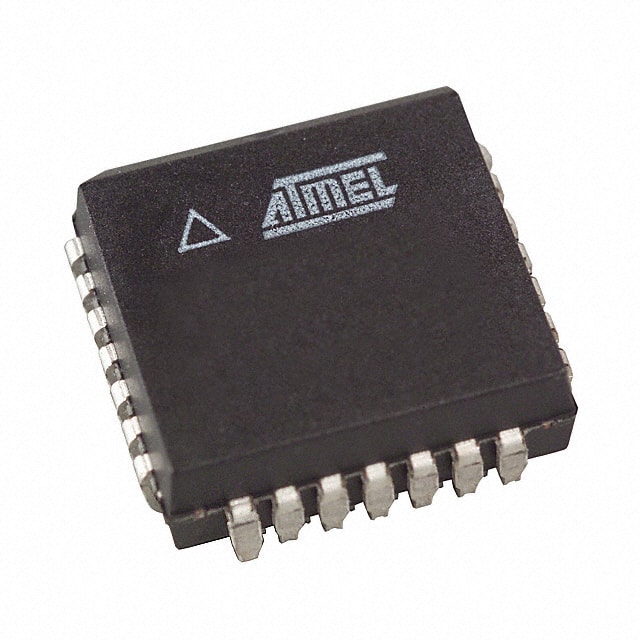

AT89C5115-SISUM The AT89C5115 is an 8-bit microcontroller from Microchip Technology featuring 16KB Flash memory, 40MHz maximum frequency, and 20 I/O lines. It comes in a 28-PLCC surface mount package.
Mfr Part #:

AT89C5115-SISUM

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The AT89C5115 is an 8-bit microcontroller from Microchip Technology featuring 16KB Flash memory, 40MHz maximum frequency, and 20 I/O lines. It comes in a 28-PLCC surface mount package.
✓ Total Stock: 26,792 pcs

AT89C5115-SISUM Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
20,541 pcs
On Request
20541 pcs On Request 1 On Request On Request 2020+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
6,251 pcs
On Request
6251 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AT89C5115-SISUM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Industrial Grade
Lead Style
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
SVHC Present
Speed
Supplier Device Package
Voltage
Watchdog Timer
View Similar Products (0)

AT89C5115-SISUM Description

Short technical summary and product information.

The AT89C5115 is a high-performance 8-bit microcontroller based on the 80C51 core. It offers 16KB of on-chip Flash memory for program storage, along with 512 bytes of RAM and 2KB of EEPROM. The device operates at up to 40 MHz and supports a supply voltage range of 3V to 5.5V. It includes a 10-bit ADC with 8 multiplexed inputs, a full-duplex UART, three 16-bit timers/counters, and a two-channel PCA with PWM capabilities. The microcontroller also features a watchdog timer and 14 interrupt sources with 4-level priority. Designed for industrial applications, it operates over a temperature range of -40°C to +85°C. The device is available in a 28-PLCC (11.51x11.51) surface mount package with J-lead configuration. It is suitable for embedded control applications requiring moderate memory and peripheral integration.

AT89C5115-SISUM Quick Information

Product Type: Microcontroller
Canonical Name: AT89C5115-SISUM 8-bit Microcontroller with 16KB Flash
Subcategory: 8-bit Microcontrollers

AT89C5115-SISUM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AT89C5115-SISUM Features

  • 80C51 core with 8-bit architecture.
  • 16KB Flash memory with 100K erase/write cycles.
  • 40 MHz maximum clock frequency.
  • 10-bit ADC with 8 multiplexed inputs.
  • 20 digital I/O lines in 28-PLCC package.

AT89C5115-SISUM Applications

  • Industrial control and automation systems.
  • Embedded sensor interfaces with analog input.
  • Motor control using PWM outputs.
  • Communication via UART for serial data transfer.

AT89C5115-SISUM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the AT89C5115?

3V to 5.5V.

What package does the AT89C5115 come in?

28-PLCC (11.51x11.51) surface mount package.

What is the operating temperature range?

-40°C to +85°C.

Is the AT89C5115 RoHS compliant?

RoHS3 Compliant (unverified).

What is the maximum clock speed?

40 MHz.

How much Flash memory does the AT89C5115 have?

16KB.

How many I/O pins are available?

20.
