| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Frequency | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Medical Grade | |
| Memory Type | |
| Military Grade | |
| Operating Temperature | |
| Standards | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Technology | |
| Width | |
| Writable Memory |
The Microchip Technology AT88SC6416CRF-MR1 is a contactless secure memory device featuring a 13.56 MHz RF interface, optimized for RF smart cards and secure data storage. It operates passively, drawing power from the RF field, eliminating the need for a battery.
This device offers 64 kilobits of user EEPROM memory, configurable into sixteen 512-byte zones, supporting byte, page, and partial page write modes. It includes advanced security features such as a 64-bit Mutual Authentication Protocol, encrypted checksum, stream encryption, four key sets, and eight sets of 24-bit passwords. Access rights can be selected by zone, and it incorporates an anti-tearing function and tamper sensors for enhanced reliability.
The RF interface adheres to ISO/IEC 14443-2 and -3 Type B standards for bit timing, signal modulation, and anticollision protocol. Data is exchanged half-duplex at 106-Kbit per second with 2-byte CRC_B for error detection. The communication range is approximately 10cm with a compatible reader. The operating temperature range is -25°C to +85°C, with an endurance of 100,000 write cycles and 10 years of data retention.

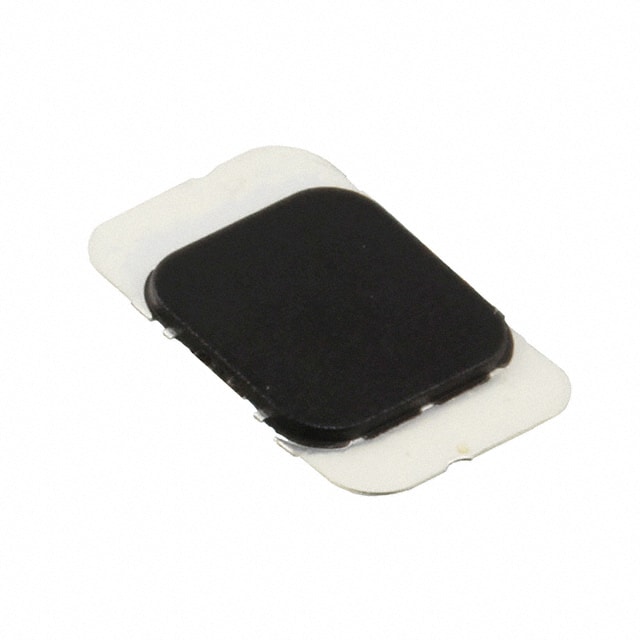

The AT88SC6416CRF-MR1 is supplied in an inlay style package, with dimensions of 8.00mm x 5.06mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AT88SC6416CRF-MR1 has 64 kilobits of user EEPROM memory.
The operating frequency of the AT88SC6416CRF-MR1 is 13.56MHz.
The AT88SC6416CRF-MR1 complies with ISO 14443 standards.
The operating temperature range is -25°C to 85°C.
The AT88SC6416CRF-MR1 uses Read/Write EEPROM memory.
The inlay dimensions are 8.00mm in length and 5.06mm in width.
No, the AT88SC6416CRF-MR1 operates passively, powered by the RF field.
