| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,450 pcs
|
2450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Power | |
| Supplier Device Package | |
| Voltage |

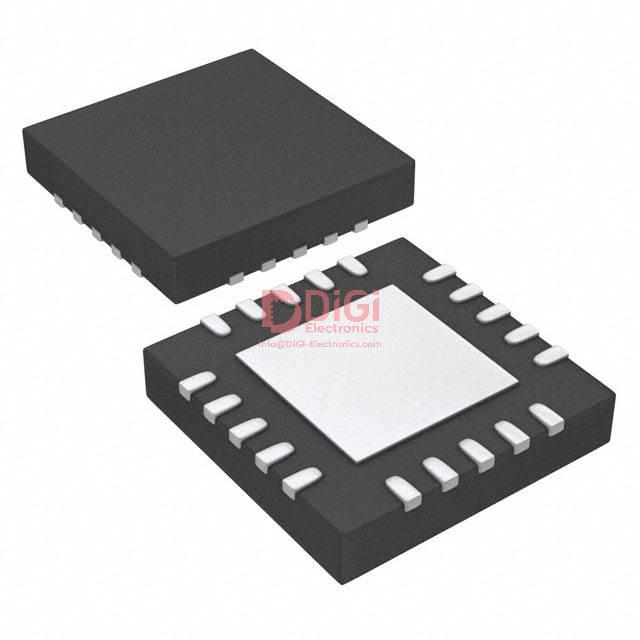

The AT73C240 from Microchip Technology is a fully integrated, low-cost stereo audio Digital-to-Analog Converter (DAC) and audio power amplifier circuit. It is specifically targeted for Li-Ion or Ni-Mh battery-powered devices such as mobile phones, smartphones, PDAs, DECT phones, digital still cameras, and music players.
The stereo DAC section offers a high-performance, 20-bit resolution with a 90 dB dynamic range. It supports various sampling rates from 8 kHz up to 48 kHz and includes drivers for stereo 32 Ohm headsets. The device also features a mono audio power amplifier capable of delivering 440 mW into an 8 Ohm load, with programmable volume control.
Designed for ease of use, the AT73C240 requires minimal external components. It operates from analog supply voltages of 2.7V to 3.3V and digital supply voltages of 2.4V to 3.3V. The mono amplifier section can be powered from a main Li-Ion battery ranging from 3V to 5.5V. The device is available in a 32-QFN (5x5) package suitable for surface mounting.
Key features include I2S serial audio interface, master volume and mute controls, and the ability to accept mixed signals from all signal paths. Its architecture provides high insensitivity to clock jitter, making it suitable for demanding audio applications in portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The analog supply voltage operation is from 2.7V to 3.3V.
The digital supply voltage operation is from 2.4V to 3.3V.
The stereo audio DAC has a 20-bit resolution.
The SNR for the playback stereo channels is 90 dB.
The mono audio power amplifier can deliver 440 mW on an 8 Ohm load.
The AT73C240 supports sampling rates of 8, 11.024, 16, 22.05, 24, 32, 44.1, and 48 kHz.
The operating temperature range is -40°C to 85°C.
