| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,950 pcs
|
1950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |
The AT45DB081B-CNC is a serial interface Flash memory from Microchip Technology, designed for digital voice, image, program code, and data storage applications. It offers 8Mbit of storage organized into 4096 pages of 264 bytes each.
This device operates with a supply voltage range of 2.7V to 3.6V and supports SPI communication up to a maximum clock frequency of 20MHz. Key features include page program operation, support for page and block erase, and two 264-byte SRAM data buffers that allow data reception while reprogramming non-volatile memory.
It is suitable for code shadowing applications due to its continuous read capability through the entire array. The AT45DB081B-CNC is designed for low power consumption, with a typical active read current of 4 mA and a typical CMOS standby current of 2 µA. It also includes a hardware data protection feature and 5.0V-tolerant inputs.

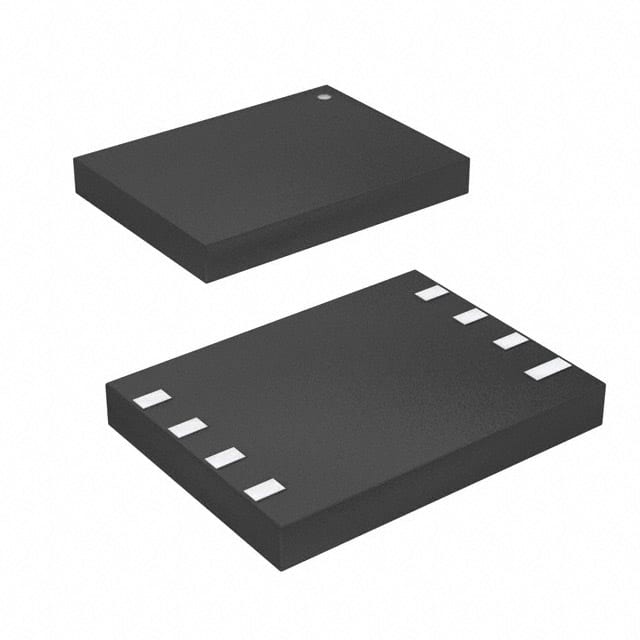

The component is available in an 8-CASON (6x8) package and is surface-mountable. It operates within a temperature range of -40°C to 85°C (TC).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.7V to 3.6V.
The operating temperature range is -40°C to 85°C (TC).
It comes in an 8-VDFN package (supplier package 8-CASON, 6x8 mm) for surface mount.
The maximum clock frequency is 20 MHz.
The memory size is 8 Mbit and the interface is SPI.
The write cycle time is 14 ms per page.
The typical standby current is 2 µA.
