| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,829 pcs
|
25829 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| ESD Protection | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage |

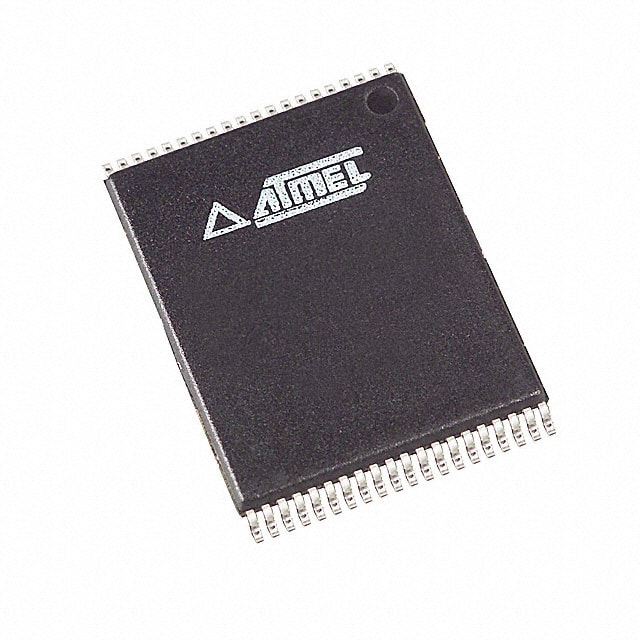

The AT27C2048-70VC from Microchip Technology is a high-performance, low-power 2,097,152-bit one-time programmable read-only memory (OTP EPROM). It is organized as 128K by 16 bits and requires a single 5V power supply for normal read operations. Access times are as fast as 55 ns, eliminating the need for speed-reducing WAIT states.
This device is ideal for high-performance 16 and 32-bit microprocessor systems due to its by-16 organization. It operates within a voltage range of 4.5V to 5.5V and has an operating temperature range of 0°C to 70°C (TC). Key electrical features include a maximum standby current of 100 µA and a maximum active current of 35 mA at 5 MHz. It also offers 2,000V ESD protection and 200 mA latchup immunity.
The AT27C2048-70VC is available in a 40-lead VSOP package, suitable for surface mounting. The Rapid Programming Algorithm allows for programming in as little as 50 µs/word. This EPROM is a direct upgrade for 512K-bit and 1M-bit EPROMs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V ±10% (4.5V to 5.5V).
40-VSOP and 40-TFSOP (0.488", 12.40mm Width) surface mount packages.
0°C to 70°C (TC).
55 ns maximum (70 ns nominal).
128K x 16 (2Mbit).
100 µA maximum.
50 µs/word typical.
