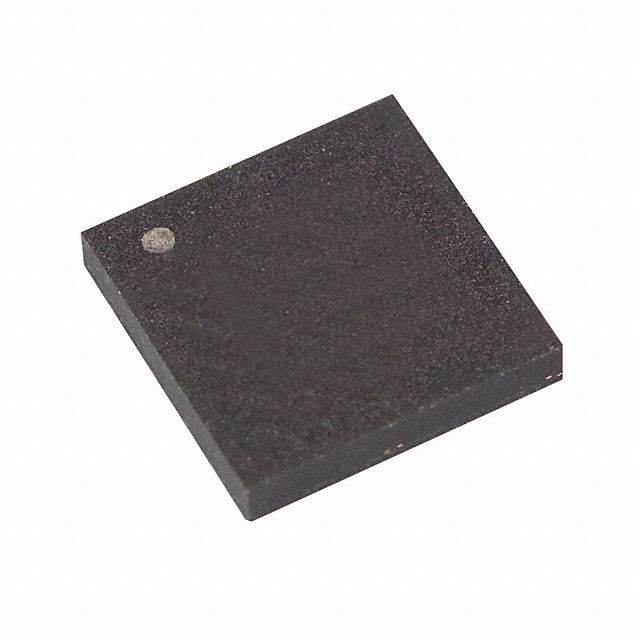

AT17F16-30CU The Microchip Technology AT17F16-30CU is a 16Mb FLASH Configuration PROM designed for FPGAs. It offers 3.3V output capability and 5V tolerant I/O pins.
Mfr Part #:

AT17F16-30CU

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology AT17F16-30CU is a 16Mb FLASH Configuration PROM designed for FPGAs. It offers 3.3V output capability and 5V tolerant I/O pins.
✓ Total Stock: 2,500 pcs
$ Price Range: $1.50

AT17F16-30CU Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
HK XINYUANXIN ELECTRONIC TECH LIMITED ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AT17F16-30CU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Interface
Memory Size
Mounting Type
Operating Temperature
Programmable Type
Speed
Supplier Device Package
Voltage
View Similar Products (0)

AT17F16-30CU Description

Short technical summary and product information.

The AT17F16-30CU from Microchip Technology is an In-System Programmable (ISP) Configuration PROM (Configurator) designed to store configuration programs for Field Programmable Gate Arrays (FPGAs). This device provides a 16,777,216 x 1-bit serial memory capacity, utilizing a low-power CMOS FLASH process.



Key electrical features include 3.3V output capability and 5V tolerant I/O pins, ensuring compatibility with various FPGA designs. It supports programming via industry-standard programmers or Atmel's ATDH2200E Programming Kit and ATDH2225 ISP Cable. The device operates over a temperature range of -40°C to 85°C and requires a supply voltage between 2.97V and 3.63V.



Available in an 8-lead LAP (6x6 mm) package, the AT17F16-30CU is suitable for surface mount applications. Its simple serial-access procedure allows for easy configuration of one or more FPGA devices. The device also features fast serial download speeds up to 33 MHz and an endurance of typically 10,000 write cycles.

AT17F16-30CU Quick Information

Product Type: FPGA Configuration Flash Memory
Series: AT17F
Canonical Name: AT17F16-30CU FPGA Configuration Flash Memory
Subcategory: FPGA Configuration Memory

AT17F16-30CU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

AT17F16-30CU Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

AT17F16-30CU Features

  • 16Mb serial FLASH configuration memory for FPGAs.
  • 3.3V output capability.
  • 5V tolerant I/O pins.
  • In-System Programmable (ISP) via 2-wire bus.
  • Available in 8-LAP (6x6) surface mount package.

AT17F16-30CU Applications

  • Stores configuration programs for FPGAs
  • Compatible with Xilinx, Altera, and Atmel FPGAs
  • Supports in-system programming via 2-wire bus
  • Enables multidevice cascading for larger arrays
  • Holds 4-bit stream files for simple system reconfiguration

AT17F16-30CU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size of the AT17F16-30CU?

The AT17F16-30CU has a memory size of 16Mb.

What type of memory is the AT17F16-30CU?

The AT17F16-30CU is a FLASH programmable type memory.

What is the output voltage capability of the AT17F16-30CU?

The AT17F16-30CU has a 3.3V output capability.

Are the I/O pins of the AT17F16-30CU 5V tolerant?

Yes, the I/O pins of the AT17F16-30CU are 5V tolerant.

How is the AT17F16-30CU programmed?

The AT17F16-30CU is In-System Programmable (ISP) via a 2-wire bus.

What is the operating voltage range for the AT17F16-30CU?

The AT17F16-30CU operates within a voltage range of 2.97V to 3.63V.

What is the operating temperature range for the AT17F16-30CU?

The AT17F16-30CU operates from -40°C to 85°C.
