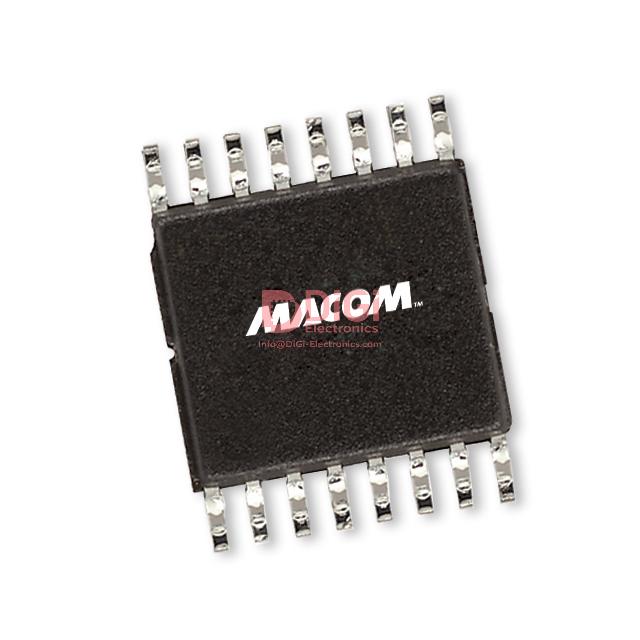

AT-263-PIN The MACOM Technology Solutions AT-263-PIN is a 5-bit digital attenuator offering up to 31 dB of attenuation across a DC to 2 GHz frequency range. It features a 50 Ohm impedance and a hermetic surface mount package.
Mfr Part #:

AT-263-PIN

Available from 2 distributors
Mfr Name: MACOM Technology Solutions
MACOM Technology Solutions
The MACOM Technology Solutions AT-263-PIN is a 5-bit digital attenuator offering up to 31 dB of attenuation across a DC to 2 GHz frequency range. It features a 50 Ohm impedance and a hermetic surface mount package.
✓ Total Stock: 760 pcs
$ Price Range: $0.99

AT-263-PIN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
753 pcs
On Request
753 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AT-263-PIN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attenuation Value
Frequency Range
Halogen Free
Impedance
Mounting Type
Storage Temperature
Tape & Reel
View Similar Products (0)

AT-263-PIN Description

Short technical summary and product information.

The MACOM Technology Solutions AT-263-PIN is a GaAs FET 5-bit digital attenuator designed for applications requiring accuracy, fast switching, and low power consumption. It provides a total attenuation of 31 dB with a minimum step size of 1 dB.



This attenuator operates over a frequency range of DC to 2 GHz and has a nominal impedance of 50 Ohms. Key electrical specifications include insertion loss values ranging from 2.4 dB to 3 dB across its operating frequency, and attenuation accuracy of ±0.25 dB for single bits up to 1.0 GHz. The switching speed is a maximum of 40 ns.



The AT-263-PIN is housed in a hermetically sealed, 16-lead ceramic surface mount package (CR-12). It is designed for lead-free and halogen-free environments, complying with RoHS standards and compatible with 260°C reflow soldering. Temperature stability is rated at ±0.18 dB from -55°C to +85°C.



Typical applications include dynamic range setting in precision receiver circuits and other gain/leveling control circuits where low intermodulation products are essential.

AT-263-PIN Quick Information

Product Type: Digital Attenuator
Canonical Name: AT-263-PIN 5-Bit Digital Attenuator
Subcategory: Attenuators

AT-263-PIN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free

AT-263-PIN Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

AT-263-PIN Features

  • 5-bit digital attenuator with 31 dB total attenuation.
  • Operates from DC to 2 GHz frequency range.
  • Features 50 Ohm nominal impedance.
  • Hermetic surface mount CR-12 package.
  • Temperature stable from -55°C to +85°C.

AT-263-PIN Applications

  • Used for RF signal level control in communication systems.
  • Ideal for dynamic range setting in receivers.
  • Suitable for gain and level adjustments in test equipment.
  • Applied in satellite and radar signal attenuation.
  • Used in wireless infrastructure for signal optimization.

AT-263-PIN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum attenuation value for the AT-263-PIN?

The AT-263-PIN offers a maximum attenuation of 31 dB.

What is the frequency range of the AT-263-PIN digital attenuator?

The frequency range for the AT-263-PIN is DC to 2 GHz.

What is the impedance of the AT-263-PIN?

The AT-263-PIN has a nominal impedance of 50 Ohms.

What is the insertion loss of the AT-263-PIN at 2 GHz?

The maximum insertion loss of the AT-263-PIN from DC to 2 GHz is 3 dB.

What is the switching speed of the AT-263-PIN?

The switching speed for the AT-263-PIN is a maximum of 40 ns.

What is the temperature stability of the AT-263-PIN?

The temperature stability of the AT-263-PIN is ±0.18 dB from -55°C to +85°C.

What package type is the AT-263-PIN available in?

The AT-263-PIN is available in a hermetic surface mount CR-12 package.
