| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
283 pcs
|
283 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Ratings | |
| Sound Pressure Level (SPL) | |
| Tape & Reel | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range |

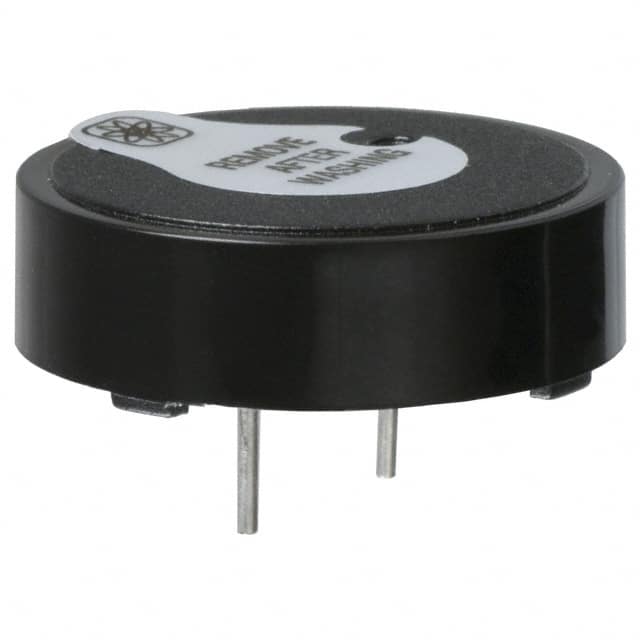

The AT-2440-TWT-R is a piezo buzzer from PUI Audio, Inc. It features an externally driven transducer that requires a peak-peak signal input. The buzzer operates at a nominal voltage of 3V with a voltage range of 1 to 30V, consuming 1mA of current. It produces a single tone at 4kHz resonant frequency with an 80dB sound pressure level measured at 10cm distance.
This buzzer uses piezo technology and has a top port location. It is rated washable and operates over a temperature range of -20°C to 60°C. The component is packaged in a 24.00mm diameter by 7.70mm height through-hole form factor with PC pins for termination.
Compliance includes RoHS3, MSL 1, and REACH unaffected as per the available data. It is suitable for use in alarms, buzzers, and sirens applications within the audio products category.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
| 10+ | $1.60 | $1.60 |
| 25+ | $1.52 | $1.52 |
| 50+ | $1.40 | $1.40 |
| 100+ | $1.29 | $1.29 |
| 250+ | $1.17 | $1.17 |
| 500+ | $1.07 | $1.07 |
| 1,000+ | $1.03 | $1.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V nominal, with an operating range of 1~30V.
4kHz.
80dB at 3V, measured at 10cm distance.
Externally driven transducer; requires a peak-peak signal.
Through-hole with PC pins.
-20°C to 60°C.
1mA nominal.
