| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,181 pcs
|
1181 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Ratings | |
| Sound Pressure Level (SPL) | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range |

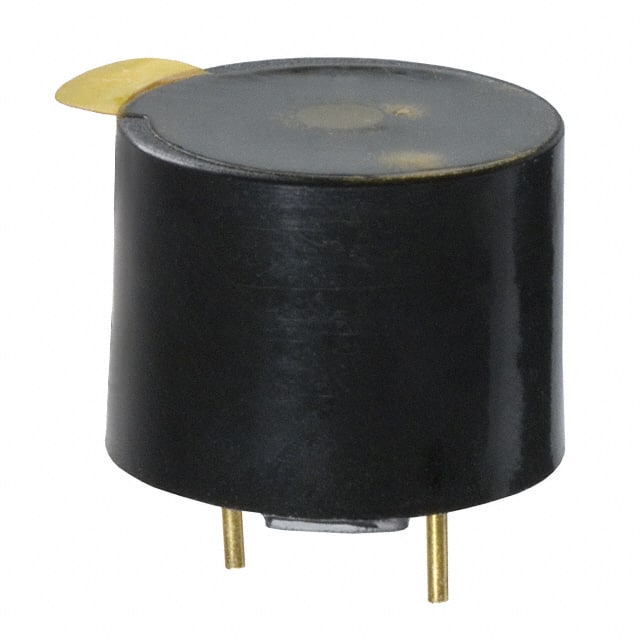

The AT-1228-TT-R is a magnetic buzzer from PUI Audio, Inc. It operates at a nominal voltage of 1.5V with a voltage range of 1V to 1.7V. It produces a single tone at 2.8kHz with a sound pressure level of 85dB measured at 10cm.
The buzzer uses electromechanical/magnetic technology and requires an external peak-peak signal driver. It draws 40mA current. The operating temperature range is -30°C to 70°C.
The component has a 12mm diameter and 10.5mm height. It features a top port location and through-hole mounting with PC pin termination. The buzzer is rated as washable.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
| 10+ | $1.39 | $1.39 |
| 25+ | $1.25 | $1.25 |
| 50+ | $1.16 | $1.16 |
| 100+ | $1.07 | $1.07 |
| 300+ | $0.95 | $0.95 |
| 500+ | $0.90 | $0.90 |
| 1,000+ | $0.84 | $0.84 |
| 5,000+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Nominal 1.5V, range 1V to 1.7V.
2.8kHz.
85dB at 1.5V, 10cm.
Externally driven transducer, requires peak-peak signal.
Through hole with PC pins.
40mA.
-30°C to 70°C.
