ASVMB-2.048MHZ-ER-T

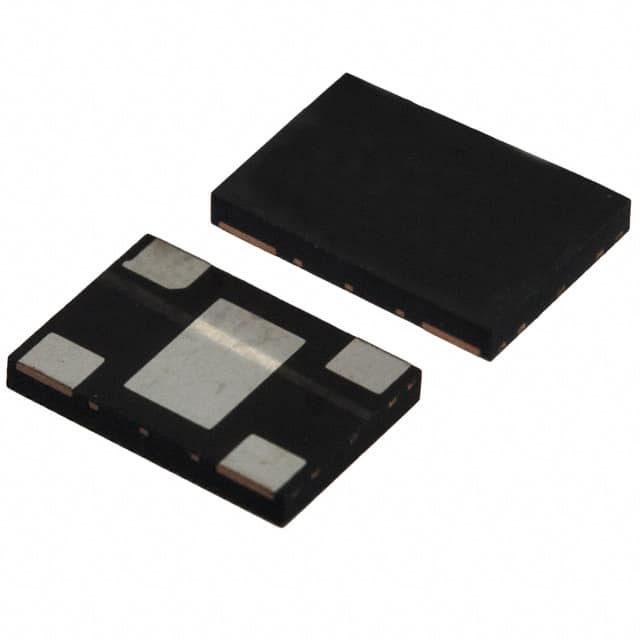

The ASVMB-2.048MHZ-ER-T is a MEMS-based XO (Standard) oscillator from Abracon LLC. It operates at 2.048 MHz with LVCMOS output logic, and is designed for surface mount assembly in a 7.0 x 5.0 x 0.90 mm 4-SMD package. The device features a frequency stability of ±50 ppm and an overall frequency stability range of -50/+50 ppm. It supports a supply voltage range of 1.8V to 3.3V and draws a maximum supply current of 15 mA (no load) at 25°C. The oscillator offers a standby function with a typical startup time of 1.5 ms and a disable time of 20 ns min to 100 ns max. Standby current is 15 µA typical. The operating temperature range is -20°C to +70°C, with storage from -55°C to +150°C. The device is RoHS/RoHS II compliant and has an MSL level of 1. It is suitable for applications including equipment connected to PCs, portable electronics, consumer electronics, and industrial equipment in vibrant, shock-prone, and humid environments. The typical rise and fall times are 1.8 ns and 1.0 ns respectively (20%/80% Vdd with 15pF load). The output load can be configured as 15, 25, or 40 pF. Jitter performance includes cycle-to-cycle jitter of 60 ps and period jitter RMS of 10 ps at 100 MHz. Aging is ±5.0 ppm over the first year.
