| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Aging | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Dimensions | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Industrial Grade | |
| Input Current | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load | |
| Output Type | |
| Package / Case | |
| Rise & Fall Time | |
| SVHC Present | |
| Start-up Time | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supply Voltage | |
| Supply Voltage Tolerance | |
| Symmetry (Duty Cycle) | |
| Tape & Reel | |
| Tape and Reel | |
| Type | |
| Voltage | |
| Width |

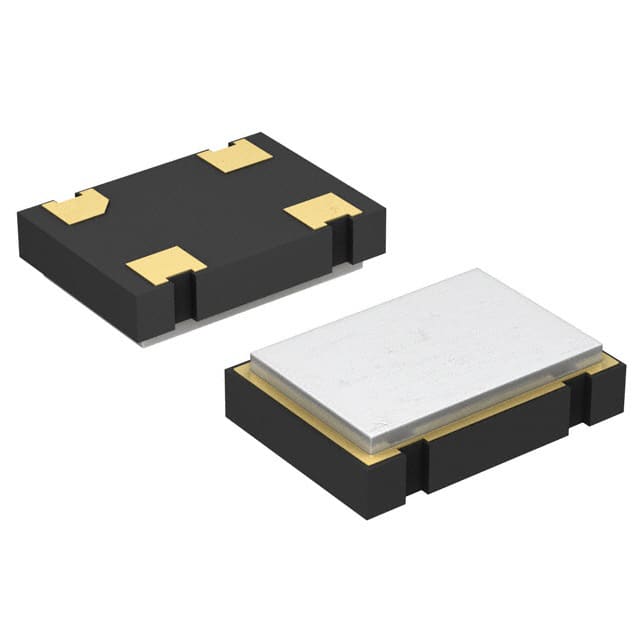

The Abracon ASVK-32.768KHZ-LJT is a surface-mount crystal oscillator (XO) operating at 32.768 kHz. It features a crystal base resonator and provides HCMOS output with a 15pF load capability. The device operates from a 3.3V supply voltage with ±10% tolerance and draws a maximum input current of 7mA. Frequency stability is rated at ±20ppm.
The oscillator supports an enable/disable function (tri-state) with a start-up time of 30ms maximum. The duty cycle is 40/60% and rise/fall times are 250ns maximum. It is designed for a wide operating temperature range of -40°C to +85°C and can be stored from -55°C to +125°C.
Packaged in a compact 4-SMD, No Lead ceramic package measuring 7.0 x 5.0 x 1.6 mm, this oscillator is suitable for surface mount assembly and tape and reel packaging options are available. Typical applications include real-time clocks and system reference clocks.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.09 | $1.09 |
| 250+ | $1.00 | $1.00 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.94 | $0.94 |
| 2,000+ | $0.88 | $0.88 |
| 5,000+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 3.3V with a tolerance of ±10%.
It comes in a 4-SMD, No Lead ceramic package measuring 7.0 x 5.0 x 1.6 mm.
-40°C to +85°C.
It is listed as RoHS3 Compliant based on distributor data, but this is unverified.
32.768 kHz.
HCMOS with 15pF load.
Yes, it features a tri-state enable/disable function.
