| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,016 pcs
|
1016 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Period Jitter RMS | |
| Rise Time | |
| SVHC Present | |
| Start-up Time | |
| Storage Temperature | |
| Supply Current | |
| Supply Voltage | |
| Symmetry | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

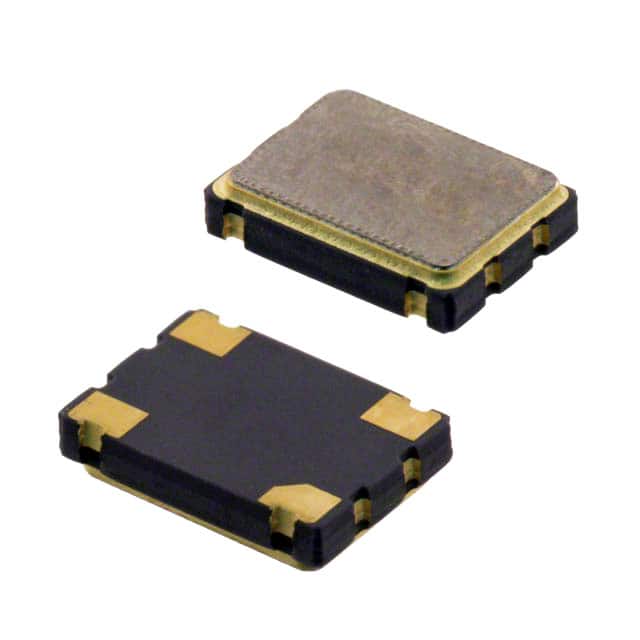

The ASV-50.000MHZ-EJ-T is a 50 MHz HCMOS crystal oscillator (XO) from Abracon LLC's ASV series. It operates from a 3.3V supply with a maximum current of 30mA and provides ±20ppm frequency stability over the -20°C to 70°C operating temperature range. The oscillator features an enable/disable function for power management.
The device delivers HCMOS output with 4.0ns maximum rise/fall time into a 15pF load. Symmetry is 40/50/60% at 1/2 Vdd. Start-up time is 5.0ms maximum with typical period jitter of 3.2ps. Aging is ±5ppm over the first year at 25°C.
Packaged in a hermetically sealed 4-SMD, No Lead surface mount package measuring 7.00mm x 5.08mm x 1.80mm, the oscillator is suitable for automated assembly. It is RoHS3 compliant and REACH unaffected, with MSL N/A (not moisture sensitive).
Typical applications include clock signaling for microprocessors, PC motherboards, and graphic cards, as well as general-purpose timing in digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
| 10+ | $1.45 | $1.45 |
| 25+ | $1.31 | $1.31 |
| 100+ | $1.26 | $1.26 |
| 250+ | $1.19 | $1.19 |
| 500+ | $1.14 | $1.14 |
| 1,000+ | $1.04 | $1.04 |
| 2,000+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V nominal.
4-SMD, No Lead surface mount package, 7.00mm x 5.08mm x 1.80mm.
-20°C to 70°C.
Yes, it is RoHS3 compliant (low confidence, unverified).
50 MHz.
HCMOS.
±20ppm.
